NCRP rf printed circuit board
,Multilayer rf printed circuit board
,NCRP fast turn pcb assembly
-
Product attributesmicrowave pcb,rf pcb,rogers pcb,Immersion gold(ENIG)
-
Copper Thickness0.5-3 oz
-
Tolerance+/-10%
-
Impedance Control50Ω, 75Ω
-
Solder Mask ColorGreen, Blue, Black, Red, Yellow, White
-
Maximum Panel Size600x1200 mm
-
Silkscreen ColorWhite, Black, Yellow
-
Lead Time3-5 days for prototype, 7-10 days for mass production
-
Place of OriginShenzhen,China
-
Marka adıONESEINE
-
SertifikaISO9001,ISO14001
-
Model NumberONE-102
-
Minimum Order Quantity1pcs
-
FiyatUSD0.1-1000
-
Packaging DetailsVacuun bag
-
Delivery Time5-8 working days
-
Payment TermsT/T, Western Union
-
Supply Ability1000000000pcs/mon

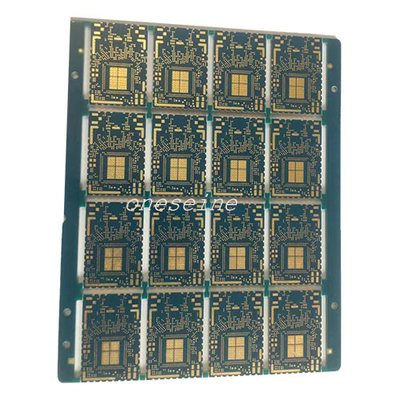

FA1 NCRP RF Microwave PCB Multilayer Rogers 4003C ENIG

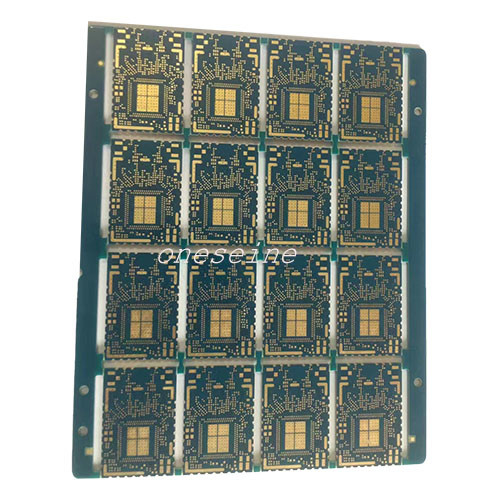

FA1 NCRP RF Printed Circuit Board Fast Turn PCB Assembly Multilayer
Product Specifications
| Attribute | Value |
|---|---|
| Product Type | Microwave PCB, RF PCB, Rogers PCB |
| Surface Finish | Immersion Gold (ENIG) |
| Copper Thickness | 0.5-3 oz |
| Tolerance | ±10% |
| Impedance Control | 50Ω, 75Ω |
| Solder Mask Color | Green, Blue, Black, Red, Yellow, White |
| Maximum Panel Size | 600×1200 mm |
| Silkscreen Color | White, Black, Yellow |
| Lead Time | 3-5 days (prototype), 7-10 days (mass production) |
Product Details
FA1 NCRP PCB 8 Multilayer RF Printed Circuit Board Design Manufacture
Quick Specifications
- Material: Rogers 4003C
- PCB Size: 2×2CM
- Layers: 2
- Surface Finish: ENIG
- Copper Weight: 1OZ
- RF PCB samples available
Premium Materials for RF/Microwave PCBs
We support a wide range of high-performance materials including Rogers (RO4003C, RO4350B, RO4360 series), Taconic (TLY-5A, TLY-5, TLY-3 series), Arlon (AD255, AD300 series), and specialized F4BK/F4BM series from Wangling/Taixing.
Microwave PCB Overview
Microwave PCBs are specialized circuit boards engineered for high-frequency applications (300MHz to several GHz). These boards feature:
- Optimized high-frequency signal handling
- Low-loss dielectric materials (PTFE, ceramic-filled substrates)
- Precision impedance control (50Ω/75Ω standard)
- Advanced RF connector integration (SMA, SMP)
- Comprehensive EMI shielding solutions
These boards are essential for microwave communication systems, radar technology, satellite communications, and high-frequency test equipment.
Critical Design Considerations
Successful RF PCB manufacturing requires strict adherence to:
- Signal integrity preservation
- Crosstalk minimization
- Component reliability assurance
- Precision impedance matching
- Advanced thermal management
