Ro3003g2 microwave pcb
,Gold Plated microwave pcb
,Rogers pcb 1oz
-
FeaturesStack Up,Calculator
-
Product NameRogers PCB
-
MaterialRogers 3003,Rogers 4003C,Rogers 4360,FR4
-
Thickness0.8mm
-
Surface FinishGold Plated
-
ServicesCustom PCB Maker,Fabrication,Prototype
-
Manufacturerrogers pcb manufacturers
-
Inquirymessage email
-
Place of OriginShenzhen,China
-
Marka adıONESEINE
-
SertifikaISO9001,ISO14001
-
Model NumberONE-102
-
Minimum Order Quantity1pcs
-
FiyatUSD0.1-1000
-
Packaging DetailsVacuun bag
-
Delivery Time5-8 working days
-
Payment TermsT/T,Western Union
-
Supply Ability1000000000pcs/mon

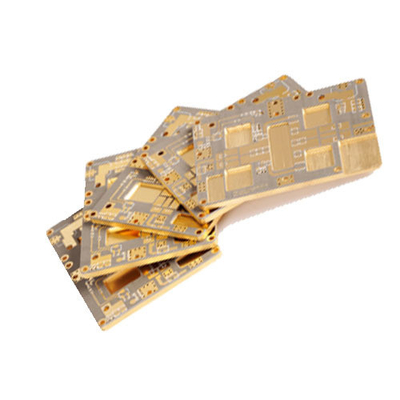

Rogers 3003 Gold Plated RF Microwave PCB 0.8mm
Rogers Gold Plated Microwave PCB Circuit Boards 1oz
Product Specifications
| Attribute | Value |
|---|---|
| Product Name | Rogers PCB |
| Material | Rogers 3003, Rogers 4003C, Rogers 4360, FR4 |
| Thickness | 0.8mm |
| Surface Finish | Gold Plated |
| Services | Custom PCB Maker, Fabrication, Prototype |
| Features | Stack Up, Calculator |
Rogers 3003 Gold Plated High Quality PCB Circuit Boards
Quick Details
- Material: High frequency Rogers 3003
- Layer: 2
- Surface finish: Gold plated
- Board size: 6*3cm
- Thickness: 0.8mm
- Copper weight: 0.5OZ
Rogers - High Frequency Circuit Material is glass reinforced hydrocarbon/ceramic laminate (not PTFE) designed for performance sensitive, high volume commercial applications.
Rogers 3003 PCB Features
The RO3003 from Rogers Corp. is a ceramic-filled PTFE composite/laminate for use in commercial microwave and RF applications. It features excellent stability with a dielectric constant of 3 up to 40 GHz at room temperature. The material has a dissipation factor (Df) of 0.0013 at 10 GHz and is ideal for band pass filters, microstrip patch antennas, and voltage controlled oscillators.
By far the most commonly used is the Rogers RO4000 series of high frequency materials. RO4350B laminate is a hydrocarbon/ceramic base, which can be manufactured using standard FR-4 type multilayer processes, making it not only popular but economical to manufacture. Low dielectric loss is the major appealing characteristic of this material.
PCB Manufacturing Capabilities
| Item | Capability |
|---|---|
| Base Material | FR-4, High TG FR-4, Halogen Free material, CEM-3, CEM-1, PTFE, Rogers, Arlon, Taconic, Aluminum base, PI, etc |
| Layers | 1-40 (≥30 layers needs review) |
| Finished inner/outer copper thickness | 0.5-6OZ |
| Finished board thickness | 0.2-7.0mm (≤0.2mm needs review), ≤0.4mm for HASL |
| Max panel size | ≤2sidesPCB: 600*1500mm, Multilayer PCB: 500*1200mm |
| Min conductor line width/spacing | Inner layers: ≥3/3mil, Outer layers: ≥3.5/3.5mil |
Manufacturer: Oneseine Technology Co., LTD
