Rogers 4003 4-Layer RF Microwave PCB 1.6mm Green

Rogers 4003 4-Layer RF Microwave PCB 1.6mm Green

Ürünler - rf mikrodalga PCB
  • Vurgulamak

    Rogers 4003 microwave pcb board

    ,

    1.6mm microwave pcb board

    ,

    Green rf prototype board

  • thickness
    1.6MM
  • color
    Green
  • layers
    4
  • product_description
    rogers pcb calculator rogers pcb fabrication rogers pcb dielectric constant rogers pcb material dielectric constant rogers pcb China rogers pcb vs fr4 rogers pcb price rogers pcb manufacturers
  • Rohs Compliant
    Yes
  • Surface Resistance
    ≤0.5Ω
  • Place of Origin
    Shenzhen,China
  • Marka adı
    ONESEINE
  • Sertifika
    ISO9001,ISO14001
  • Model Number
    ONE-102
  • Minimum Order Quantity
    1pcs
  • Fiyat
    USD0.1-1000
  • Packaging Details
    Vacuun bag
  • Delivery Time
    5-8 working days
  • Payment Terms
    T/T,Western Union
  • Supply Ability
    1000000000pcs/mon

Rogers 4003 4-Layer RF Microwave PCB 1.6mm Green

Fiyat Al Şimdi başvurun

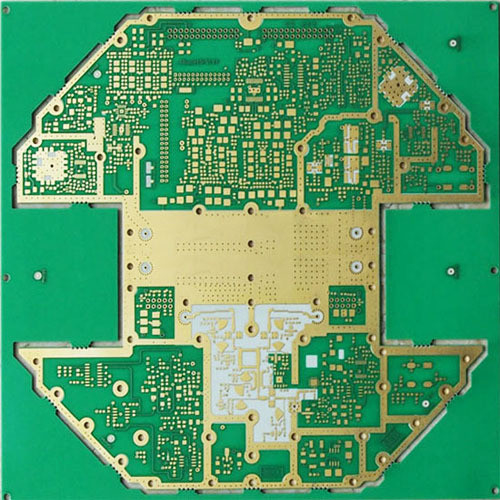

Rogers 4003 RF Prototype Microwave PCB Board Fabrication 1.6mm Green
Thickness: 1.6MM
Color: Green
Layers: 4
Rohs Compliant: Yes
Surface Resistance: ≤0.5Ω
Technical Specifications
Material Rogers Solder mask Green
Thickness 1.6mm Silkscreen White
Layer 4 Board size 12*16cm
Surface ENIG Min line 3mil
Copper 2OZ Min hole 0.15mm
Why Choose Our PCB Manufacturing Services
  • Competitive pricing with perfect quality and quick delivery
  • OEM services available
  • Comprehensive one-stop service
  • Certified to ROHS, ISO9001, ISO14001, TS16949, and UL standards
  • 24/7 technical support
  • Experienced impedance design specialists
  • Over 20 years experience in PCB, PCBA, and TV BOX manufacturing
  • 24-hour English engineering question confirmation via email
Manufacturing Capabilities
Items Normal Standard Ultimate
Material FR-4; High TG FR-4; CEM-3; CEM-4 Al-Base
Layer NO. 1-20 40
Board Size 50mm*50mm--560mm*640mm 35mm*50mm
Board Thickness 0.4mm-4.0mm 0.3mm--6.0mm
Thickness Tolerance ±10% ±7%
Min Hole Size 0.2mm 0.15mm
Copper Thickness 18um--105um 18um--420um
Copper Plating Hole 18um--30um 18um--40um
Min Trace Width 0.1mm 0.75mm
Min Space Width 0.1mm 0.75mm
SMD Pitch 0.4mm 0.4mm
BGA Pitch 0.6mm 0.6mm
Min Annual Ring 0.07mm 0.05mm
Register Tolerance 0.05mm 0.025mm
Solder Mask Color Green; Blue; Black; Red White; Yellow
Peelable Mask 0.3mm 0.5mm
HASL Thickness 2.5um
Lead Free HASL 2.5um
Immersion Gold Nickel:47um Au:0.05um Nickel:7um Au:0.2um
OSP Thickness 0.2-0.5um
Outline Tolerance CNC:±0.1mm; V-CUT:±0.1mm; Punching:±0.15mm
Impedance Control ±10% ±7%
Warpage Less than 1% Less than 0.7%
Certificate ISO9001; TS16949
Alternative High-Frequency PCB Materials

In addition to Rogers PCB materials, several other popular materials are used for high-frequency PCBs:

  • Isola: Offers materials like IS410, IS620, and Astra MT with excellent electrical properties and low loss
  • Taconic: RF-35, RF-35A, and TLX product lines with low dielectric loss and high thermal conductivity
  • Arlon: Specializes in materials like 85N, 85HP, and 55NT with low loss and good dimensional stability
  • Nelco: N4000-13EP and N7000-2 materials with low dielectric loss and high glass transition temperature
  • Panasonic/Megtron: Megtron 6 and 7 materials offering low loss and excellent electrical properties

Material selection depends on specific application requirements and design considerations. Consultation with experienced PCB manufacturers is recommended.
