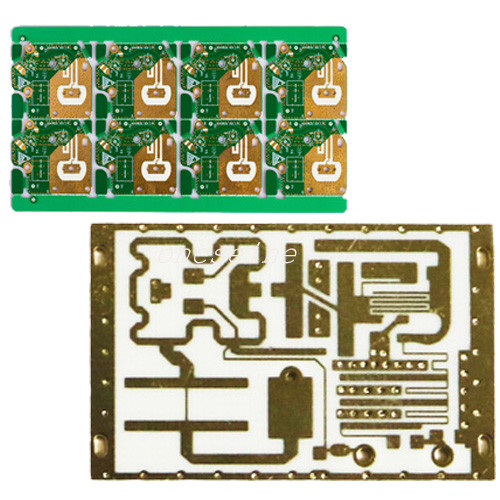

Rogers 3003 RF Microwave PCB 1GHz-10GHz ENIG Finish
1GHz-10GHz HF Microwave Printed Circuit Boards Fabrication Rogers 3003
Product Specifications
| Attribute | Value |
|---|---|
| Minimum Hole Size | 0.010 inches |
| Solder Mask Color | Green |
| Minimum Trace Spacing | 0.005 inches |
| Dielectric Constant | 3.0 |
| Frequency Range | 1 GHz - 10 GHz |
| Surface Finish | ENIG |
| Minimum Trace Width | 0.005 inches |
| Loss Tangent | 0.0013 |
PCB Quick Details
- Material: Rogers 3003
- PCB size: 320*150MM
- Layer: 4
- RF PCB samples are provided
- Surface finish: ENIG
- Copper weight: 0.5OZ
Popular Materials for RF PCB and Microwave PCB
- Rogers: RO4003C, RO4350B, RO4360, RO4533, RO4535, RO4730, RO4232, RO4233, RO3003, RO3006, RO3010, RO3035, R03203, RO3206, RO3210, RO3730, RO5780, RO5880, RO6002, RO3202, RO6006
- Taconic: TLY-5A, TLY-5, TLY-3, HT1.5, TLX-0, TLX-9, TLX-8, TLX-7, TLX-6, TLC-27, TLE-95, TLC-30, TPG-30, TLG-30, RF-30, TSM-30, TLC-32, TPG32, TLG-32, TLG-34, TPG-35, TLG-35, GF-35, RF-35, RF-35A, RF-35P, RF-41, RF-43, RF-45, RF-60A, CER-10
- Arlon: AD255 C03099, AD255 C06099, AD255 C04099, AD300 C03099, AD300 C04099, AD300 C06009, TC600, AD250 C02055C, TC350, MCG300CG, DCL220, CUCLAD 217LX, CUCLAD 250GX, ARLON 55NT
- Wangling, Taixing: F4BK225, F4BK265, F4BK300, F4BK350, F4BM220, F4BM255, F4BM265, F4BM300, F4BM350
For successful Radio Frequency (RF) PCB manufacturing, strict design, fabrication and assembly procedures must be followed to avoid crosstalk, maintain signal integrity, and prevent component failure.
Microwave PCB Concept
Microwave PCBs are specialized circuit boards designed for high-frequency signals in microwave applications (300 MHz to several GHz). They minimize signal loss, maintain controlled impedance, and reduce electromagnetic interference.
Key Features of Microwave PCBs
- High-Frequency Design: Optimized for microwave range signals with minimal loss
- Specialized Materials: Use of low-loss dielectric materials like PTFE-based substrates
- Controlled Impedance: Precise trace geometries for signal integrity
- RF Connectors: SMA or SMP connectors for high-frequency performance
- Advanced Grounding: Effective shielding techniques to minimize interference
Microwave PCBs are essential for communication systems, radar, satellite technology, wireless networks, and high-frequency test equipment. Their design and manufacturing require specialized expertise in high-frequency applications.
