PTFE RF Microwave PCB
,OSP RF Microwave PCB
,OSP rf pcb board
-
Minimum Line Width/Spacing3mil/3mil
-
Impedance ControlYes
-
Rohs CompliantYes
-
Layer Count2-8 layers
-
MaterialPTFE
-
Surface FinishImmersion Gold, HASL, OSP
-
Solder Mask ColorGreen, Blue, Black, Red, Yellow, White
-
Lead Time3-5 days for prototype, 7-10 days for mass production
-
Place of OriginShenzhen,China
-
Marka adıONESEINE
-
SertifikaISO9001,ISO14001
-
Model NumberONE-102
-
Minimum Order Quantity1pcs
-
FiyatUSD0.1-1000
-
Packaging DetailsVacuun bag
-
Delivery Time5-8 working days
-
Payment TermsT/T, Western Union
-
Supply Ability1000000000pcs/mon
Rogers 3010 PTFE RF Microwave PCB 3mil Line Width
Rogers 3010 OSP PTFE RF Microwave PCB Circuit Board 3mil
Product Specifications
| Attribute | Value |
|---|---|
| Minimum Line Width/Spacing | 3mil/3mil |
| Impedance Control | Yes |
| Rohs Compliant | Yes |
| Layer Count | 2-8 layers |
| Material | PTFE |
| Surface Finish | Immersion Gold, HASL, OSP |
| Solder Mask Color | Green, Blue, Black, Red, Yellow, White |
| Lead Time | 3-5 days for prototype, 7-10 days for mass production |
Product Details

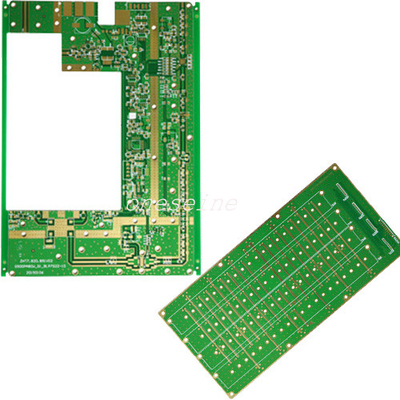

Rogers 3010 Material Ifb Microwave Oven PCB RF Circuit Board
PCB Quick Details
- Material: Rogers 3010
- PCB size: 290*120MM
- Layer: 2
- RF pcb samples are provided
- Surface finish: ENIG
- Copper weight: 0.5OZ
EMI/EMC Compliance Standards
When designing microwave PCBs, compliance with electromagnetic interference (EMI) and electromagnetic compatibility (EMC) standards is essential. Key standards include:
- FCC Part 15: Governs unintentional radiators and sets limits for emissions
- CISPR 22/EN 55022: Specifies radio disturbance limits for IT equipment
- CISPR 11/EN 55011: Focuses on industrial, scientific, and medical equipment
- CISPR 25: Addresses EMC requirements for vehicles
- IEC 61000-4-x series: Provides framework for EMC testing
- MIL-STD-461: Specifies EMC requirements for military equipment
- RTCA DO-160: Environmental test procedures for avionics
Note: Standards may be updated over time. Consult with EMC specialists for current compliance requirements.
Popular RF PCB Materials
High-performance materials for RF and microwave applications include:
- Rogers: RO4003C, RO4350B, RO3003, RO3010 series
- Taconic: TLY-5A, TLX series, RF series
- Arlon: AD255, AD300, TC series
- Wangling/Taixing: F4BK, F4BM series
Microwave PCB Concept
Microwave PCBs are specialized circuit boards designed for high-frequency applications (300MHz to several GHz), featuring:
- Optimized high-frequency design to minimize signal loss
- Specialized PTFE-based materials with low dielectric loss
- Precision-controlled impedance traces
- Advanced grounding and shielding techniques
- High-performance RF connectors (SMA, SMP)
These boards are essential for microwave communication systems, radar, satellite communications, and wireless networks.
