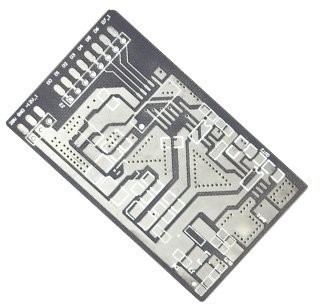

Rogers RO4350B 2 Layer High Frequency PCB 7x5cm ENIG

Rogers RO4350B 2 Layer High Frequency PCB 7x5cm ENIG

Ürünler - rf mikrodalga PCB
  • Vurgulamak

    ODM RF Microwave PCB

    ,

    RF Microwave PCB Assy

    ,

    RF printed circuit assy

  • Number of Layers
    2
  • Material
    RO4350B
  • Type
    High Frequency
  • Brand
    ROGERS PCB
  • Size
    7*5cm
  • Surface
    ENIG
  • Place of Origin
    Shenzhen,China
  • Marka adı
    ONESEINE
  • Sertifika
    ISO9001,ISO14001
  • Model Number
    ONE-102
  • Minimum Order Quantity
    1pcs
  • Fiyat
    USD0.1-1000
  • Packaging Details
    Vacuun bag
  • Delivery Time
    5-8 working days
  • Payment Terms
    T/T,Western Union
  • Supply Ability
    1000000000pcs/mon

Rogers RO4350B 2 Layer High Frequency PCB 7x5cm ENIG

  • Rogers RO4350B 2 Layer High Frequency PCB 7x5cm ENIG
Fiyat Al Şimdi başvurun
ODM Rogers RO4350B RF Microwave PCB 2 Layers Printed Circuit Assy
Product Specifications
Attribute Value
Number of Layers 2
Material RO4350B
Type High Frequency
Brand ROGERS PCB
Size 7*5cm
Surface ENIG
PCB Parameters
Product name: Rogers RO4350B hf pcb
Brand: ONESEINE
Material: Rogers RO450B
Thickness: 1.65mm
Layers: 2
DK: 3.48
Loss factor: 0.0004(1 MHZ), 0.0009(10 GHZ)
Core thickness: 1.524mm
Tg: ＞280
Td: 390
Flame Rate: V-0
Thermal conductivity: 0.69w/m.k
High-Frequency PCB Materials
In addition to Rogers PCB materials, several other popular materials are used for high-frequency PCBs:
  • Isola: IS410, IS620, and Astra MT materials designed for high-frequency applications
  • Taconic: RF-35, RF-35A, and TLX materials with low dielectric loss
  • Arlon: 85N, 85HP, and 55NT materials with excellent thermal properties
  • Nelco: N4000-13EP and N7000-2 materials for high-speed digital applications
  • Panasonic/Megtron: Megtron 6 and Megtron 7 laminates for high-frequency reliability
Rogers PCB Applications
Ideal for 5G technology and high-performance RF applications:
  • Automotive Radar and Sensors
  • Microwave equipment
  • Cellular Base Station Antennas
  • RF Identification (RFID) Tags
  • 5G Stations
  • Microwave point-to-point (P2P) links
  • LNB's for Direct Broadcast Satellites
Premium RO4350B Laminate Features
Ultra-low dielectric loss (Df = 0.0037 @ 10 GHz) and stable dielectric constant (Dk = 3.48 ±0.05)
Superior thermal management vs. FR4 (thermal conductivity: 0.62 W/m/K)
Low Z-axis CTE (32 ppm/°C) prevents via cracking under thermal stress
Optimized 2-Layer Design
Cost-effective solution for RF prototyping and volume production
Supports 20mil dielectric thickness and 1oz copper foil (customizable)
Impedance control tolerance ±5% (e.g., 50Ω CPW lines)
Critical Applications
  • 5G Infrastructure: mmWave antennas, beamforming modules
  • Automotive Radar: 24GHz/77GHz ADAS sensors
  • Aerospace & Defense: Radar systems, satellite communications
  • IoT/WiFi 6E/7: High-power RF amplifiers
  • Medical Devices: Imaging and diagnostic equipment
Manufacturing Advantages
  • Signal Integrity First: Minimize insertion loss and phase distortion in GHz-range designs
  • Cost Efficiency: RO4350B outperforms PTFE laminates at ~40% lower cost
  • Reliability: UL 94 V-0 flammability rating and IATF 16949 compliance
  • Advanced DFM Support: Free stackup optimization and impedance modeling
Rogers RO4350B 2 Layer High Frequency PCB 7x5cm ENIG 0
