4003C high frequency circuit board
,Rigid high frequency circuit board
,Rogers rigid flex pcb fabrication
-
product_nameRogers 4003C 2 layer double side High Frequency PCB
-
product_typeBase Material Protoboard PCB
-
Layers2L
-
Minimum Hole Size0.15 mm
-
Size5*5cm
-
MaterialRogers
-
Surface FinishHASL, ENIG, OSP, Immersion Silver, Immersion Tin
-
Assembly Optionyes
-
Minimum Line Width/Spacing0.1/0.1 mm
-
Silkscreen ColorGreen/white/yellow/black/blue/purple
-
Min Line Width4 mil
-
Panel2*1
-
Place of OriginShenzhen,China
-
Marka adıONESEINE
-
SertifikaISO9001,ISO14001
-
Model NumberONE-102
-
Minimum Order Quantity1pcs
-
FiyatUSD0.1-1000
-
Packaging DetailsVacuun bag
-
Delivery Time5-8 working days
-
Payment TermsT/T,Western Union
-
Supply Ability1000000000pcs/mon

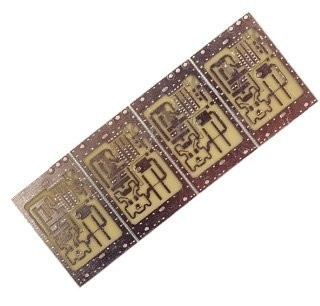

Rogers 4003C 2 Layer High Frequency PCB for RF Microwave Applications
Rogers 4003C High Frequency Circuit Board Microwave Rigid Flex PCB Fabrication
Product Specifications
| Attribute | Value |
|---|---|
| Product Name | Rogers 4003C 2 layer double side High Frequency PCB |
| Product Type | Base Material Protoboard PCB |
| Layers | 2L |
| Minimum Hole Size | 0.15 mm |
| Size | 5*5cm |
| Material | Rogers |
| Surface Finish | HASL, ENIG, OSP, Immersion Silver, Immersion Tin |
| Assembly Option | Yes |
| Minimum Line Width/Spacing | 0.1/0.1 mm |
| Silkscreen Color | Green/white/yellow/black/blue/purple |
| Min Line Width | 4 mil |
| Panel | 2*1 |
PCB Parameters
- Material: Rogers 4003C
- Number of layers: double-sided circuit board
- Board thickness: 1.6mm
- Copper thickness: 1oz
- Surface treatment process: Immersion gold + selective thick gold plating
- Solder mask character color: brown and white
- Minimum line width/line spacing: 15.0/12.0mil
- The smallest hole: 0.5mm
- Technical features: countersunk hole
Applications
With the rapid development of 5G technology, high-performance high-frequency PCBs and RF PCBs with low electrical noise and minimal signal losses are in high demand. Rogers PCB material is an ideal, cost-effective solution for these applications:
- Automotive Radar and Sensors
- Microwave equipment of all kinds
- Cellular Base Station Antennas
- RF Identification (RFID) Tags
- 5G Stations
- Microwave point to point (P2P) links
- LNB's for Direct Broadcast Satellites
Frequently Asked Questions
What is needed for quotation?
PCB: Quantity, Gerber file and technical requirements (material, surface finish treatment, copper thickness, board thickness)
PCBA: PCB information, BOM, testing documents
PCBA: PCB information, BOM, testing documents
What file formats do you accept for production?
Gerber file: CAM350 RS274X
PCB file: Protel 99SE, P-CAD 2001 PCB
BOM: Excel (PDF, word, txt)
PCB file: Protel 99SE, P-CAD 2001 PCB
BOM: Excel (PDF, word, txt)
Are my files safe?
Your files are held in complete safety and security. We protect the intellectual property for our customers throughout the entire process. All customer documents are never shared with any third parties.
What is your minimum order quantity?
There is no MOQ. We can handle both small and large volume production with flexibility.
What about shipping costs?
Shipping costs are determined by destination, weight, and packing size of the goods. Please contact us for a shipping cost quote.
Do you accept process materials supplied by clients?
Yes, we can provide component sourcing, and we also accept components from clients.
