4 Layer RF Microwave PCB
,77GHZ RF Microwave PCB
,FR4 rf prototype board
-
Number of Layers4
-
MaterialRogers with Fr4 Mix
-
Stackup77 GHZ RF Radio PCB
-
Product Descriptioncircuit board factory china pcb factory flexible circuit manufacturers pcb production and assembly electronics pcb manufacturing flexible printed circuit manufacturers pcb board company pcb mac
-
Function100% Pass electrical test
-
Min Line Width4 mil
-
Copper Thinknes1 oz
-
OutlineRout And Score
-
Place of OriginShenzhen,China
-
Marka adıONESEINE
-
SertifikaISO9001,ISO14001
-
Model NumberONE-102
-
Minimum Order Quantity1pcs
-
FiyatUSD0.1-1000
-
Packaging DetailsVacuun bag
-
Delivery Time5-8 working days
-
Payment TermsT/T,Western Union
-
Supply Ability1000000000pcs/mon
4 Layer Rogers FR4 RF Microwave PCB 77GHz High Frequency
4 Layer Rogers FR4 Radio RF Microwave PCB 77GHZ High Frequency Prototype Circuit Board
Product Specifications
| Attribute | Value |
|---|---|
| Number of Layers | 4 |
| Material | Rogers with Fr4 Mix |
| Stackup | 77 GHZ RF Radio PCB |
| Function | 100% Pass electrical test |
| Min Line Width | 4 mil |
| Copper Thickness | 1 oz |
| Outline | Rout And Score |
Detailed Product Description

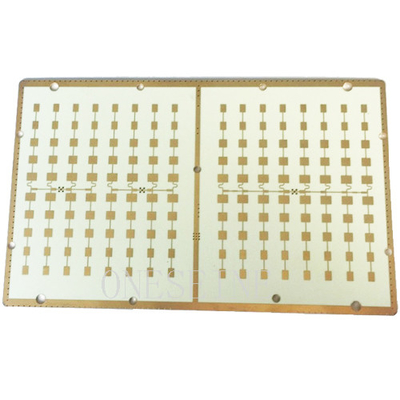

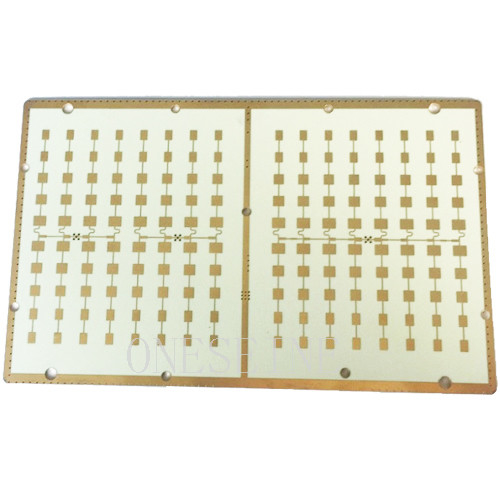

4 Layer Rogers with Fr4 Mix stack up PCB 77 GHZ RF Radio Microwave High Frequency Circuit Board
- Color: White
- Material: Rogers 4350 Material
- Layer: 4
- Board Size: 7*9cm
- Copper Thickness: 1 Oz
- Min Line Width: 4mil
- Min Line Space: 4mil
- Surface Finish: Immersion Silver
Radio Frequency (RF) PCB Technology
Radio Frequency (RF) refers to electromagnetic frequencies between 300KHz to 300GHz that can be radiated into space. RF current represents high frequency alternating electromagnetic waves. Currents changing more than 10,000 times per second are considered high frequency, with radio frequencies being the higher bands of this spectrum.
In electronic theory, alternating current through a conductor generates an electromagnetic field. At frequencies above 100kHz, these waves propagate through air and reflect off the ionosphere, enabling long-distance transmission. This RF technology is fundamental to wireless communications and cable television systems.
