Rogers Duroid RF Microwave PCB
,1OZ RF Microwave PCB
,5880 rf circuit board
-
Board size26*16 cm
-
Min line width6mil
-
Product descriptionrogers rt duroid 5880 thickness duroid definition rt duroid 5880 specifications rogers 6010 rogers 4003 rogers ptfe rogers 4835t rogers flexible substrate
-
Copper Thick1 OZ
-
ApplicationMicrowave RF field
-
Pcb ItemPCB design
-
Solder Maskblack
-
Dielectric Loss0.0027
-
Base MaterialRogers,FR-4/aluminum/ceramic
-
Surface FinishImmersion Gold
-
Place of OriginShenzhen,China
-
Marka adıONESEINE
-
SertifikaISO9001,ISO14001
-
Model NumberONE-102
-
Minimum Order Quantity1pcs
-
FiyatUSD0.1-1000
-
Packaging DetailsVacuun bag
-
Delivery Time5-8 working days
-
Payment TermsT/T,Western Union
-
Supply Ability1000000000pcs/mon

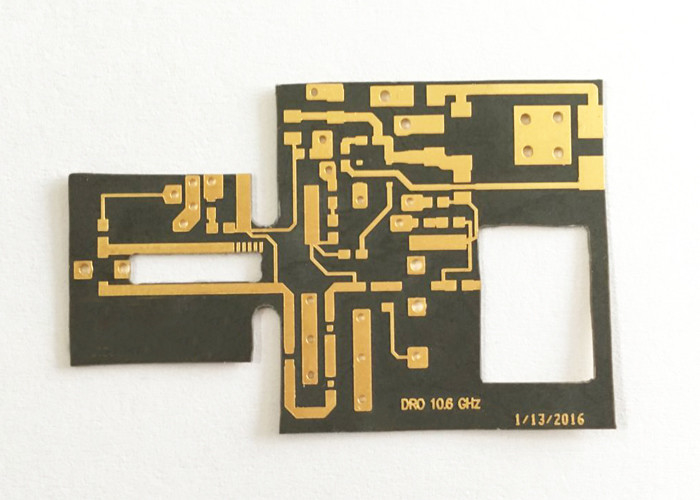

Rogers Duroid 5880 RF Microwave PCB 0.787mm Immersion Gold
Rogers Duroid 5880/5870 RF Microwave PCB Circuit Board 1OZ Immersion Gold
Product Specifications
| Attribute | Value |
|---|---|
| Board size | 26*16 cm |
| Min line width | 6mil |
| Copper Thickness | 1 OZ |
| Application | Microwave RF field |
| Solder Mask | Black |
| Dielectric Loss | 0.0027 |
| Base Material | Rogers, FR-4/aluminum/ceramic |
| Surface Finish | Immersion Gold |
Detailed Specifications
- Board thickness: 0.787mm
- Copper foil: 35UM
- Surface: Immersion gold
- Material: Rogers 5880 0.787mm
- Min hole: 0.4mm
- Without solder mask and silkscreen
Note: Rogers 5880 material is glass microfiber reinforced PTFE, making it prone to contraction. Therefore, minimum line width of 3mil or hole size of 0.15mm may be difficult to achieve.
Frequently Asked Questions
Q: I have designed power divider in Rogers RT 5880 substrate. Can you help with fabrication quote and prototype?
A: Yes, please provide gerber file and requirements for our engineers to review and quote.
Q: RT5880 material is expensive. Are there alternatives with similar performance?
A: Consider Arlon Diclad880, Taconic TLY-5, or Nelco NY9220. Price order: Rogers5880 > Taconic TLY-5 > Nelco NY9220 > Arlon Diclad880.
High Frequency PCB Material Selection
Selecting PCB materials for high-frequency applications involves balancing price and performance. Key considerations include application requirements and fabrication complexity. Rogers 5880 PCB offers excellent conductivity and cost-effectiveness for demanding applications.
Our expertise includes prototype-to-volume manufacturing of RF circuits, working closely with customers to optimize designs for quality, cost, and delivery speed.
Rogers PCB Applications
Ideal for 5G technology and high-performance RF applications requiring low electrical noise and signal losses:
- Automotive Radar and Sensors
- Microwave equipment
- Cellular Base Station Antennas
- RF Identification (RFID) Tags
- 5G Stations
- Microwave point-to-point (P2P) links
- LNB's for Direct Broadcast Satellites
