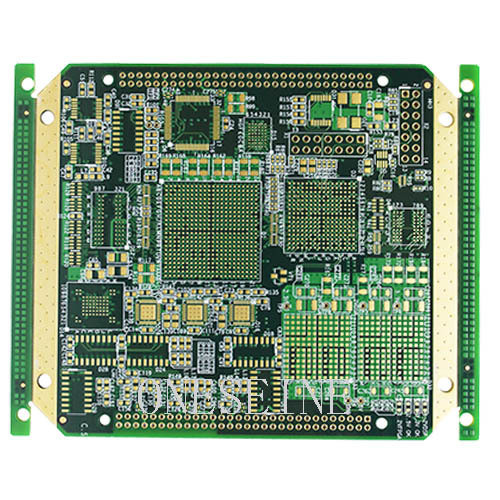

16 Layer High TG PCB 2.0mm for Industrial Electronics

High Speed Design 16 Layer High TG PCB for Electronic Equipment

• Brand Name: ONESEINE/Customized
• Min. Order Quantity: No minimum
• Supply Ability: 30~50 thousand ㎡/Month
• Port: Shenzhen
• Service: EMS/OEM/ODM
• Base Material: High Tg FR4
• Copper Thickness: 1oz
• Board Thickness: 2.0mm
• Solder Mask Color: Green (customizable)
• Silkscreen Color: White (customizable)
• Surface Finishing: Immersion Gold
• Application Industry: Industrial Control
• Outer Line width/space: 4/4mil
• Inner Line width/space: 3.5/3.5mil
• Min. Hole Size: 0.75mm
• Test Method: 100% E-Test
• Standard: IPC-Class2/Class 3

Ideal for demanding applications in:

• Petrochemical industry
• Mining industry
• Industrial equipment
• GPS and automotive systems
• Instrumentation and medical equipment
• Aircraft and military applications
• DC-DC Power Converters
• High Brightness LED systems
• Power supply circuits

High Tg PCBs (glass transition temperature above 170°C) offer superior performance in high-temperature environments compared to standard PCBs (Tg ~130°C). These advanced circuit boards maintain dimensional stability and mechanical integrity under thermal stress, making them essential for modern high-performance electronics.

• Excellent heat dissipation (3-4 times better than standard FR-4)
• Superior thermal and insulation reliability
• Enhanced processability with low Z-CTE
• Improved resistance to moisture and chemicals
• Better mechanical strength at elevated temperatures
• Reduced thermal expansion for stable performance

High TG PCBs utilize specialized laminates with thermally stable resin systems that maintain structural integrity at temperatures up to 180°C. The manufacturing process incorporates controlled lamination profiles, advanced copper plating techniques, and high-temperature compatible materials to ensure reliable performance in demanding applications.
