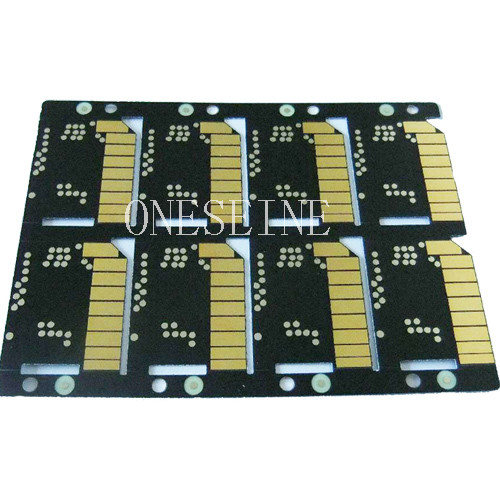

Black FR4 1MM Double Sided PCB Board 1OZ Copper

Black FR4 1MM Double Sided PCB Board 1OZ Copper

Ürünler - Yüksek TG PCB
  • Vurgulamak

    1MM copper clad pcb board

    ,

    Photoresist copper clad pcb board

    ,

    customized photoresist pcb

  • Renk
    Siyah
  • PCB kalınlığı
    1mm, standart, 4 kat, standart, 2 katman
  • Katman
    2
  • Bakır tabaka kalınlığı
    1 oz
  • Tolerans
    +-8%
  • Fob fiyatı
    0,1-10 ABD Doları/ Parça
  • Küçük sipariş
    Kabul etmek
  • Slik ekran rengi
    Beyaz siyah mavi yeşil kırmızı
  • Place of Origin
    Shenzhen,China
  • Marka adı
    ONESEINE
  • Sertifika
    ISO9001,ISO14001
  • Model Number
    ONE-102
  • Minimum Order Quantity
    1pcs
  • Fiyat
    USD0.1-1000
  • Packaging Details
    Vacuun bag
  • Delivery Time
    5-8 working days
  • Payment Terms
    T/T,Western Union
  • Supply Ability
    1000000000pcs/mon

Black FR4 1MM Double Sided PCB Board 1OZ Copper

  • Black FR4 1MM Double Sided PCB Board 1OZ Copper
Fiyat Al Şimdi başvurun
1MM Photoresist Copper Clad PCB Board FR4 Black Customized
Product Specifications
Attribute Value
Color Black
PCB Thickness 1MM, Standard, 4 layer, Standard, 2 layer
Layer 2
Copper Layer Thickness 1OZ
Tolerance ±8%
FOB Price US $0.1-10/Piece
Small Order Accept
Slik Screen Color White, Black, Blue, Green, Red
Detailed PCB Parameters
Material: FR4 KB6165F
Brand: ONESEINE
PCB Board Thickness: 1.0mm
Number of Layers: Double sided
Plate Size: 79.48 × 35.6mm
Minimum Aperture: 0.332mm
Line Width/Spacing: 0.42 × 0.46mm
Copper Foil Thickness: 1/1OZ
Surface Treatment: HASL
Solder Mask/Character: Green oil white silkscreen
ONESEINE Standard FR-4 Material Properties
  • High Glass Transition Temperature (Tg) (150Tg or 170Tg)
  • High Decomposition Temperature (Td) (>345°C)
  • Low Coefficient of Thermal Expansion (CTE) (2.5%-3.8%)
  • Dielectric Constant (@1 GHz): 4.25-4.55
  • Dissipation Factor (@1 GHz): 0.016
  • UL rated (94V-0, CTI = 3 minimum)
  • Compatible with standard and lead-free assembly
  • Laminate thickness available from 0.005" to 0.125"
Performance Advantages of Black 1mm FR4 PCBs
Black FR4 PCBs offer superior performance for demanding applications across multiple industries:
Key Benefits
Stealth Signal Integrity: Near-zero reflection (LRV <5%) prevents optical interference in LiDAR/sensor arrays
EMI Shielding: Carbon-rich resin reduces crosstalk in dense designs
Structural Strength: 2X rigidity vs. 0.8mm boards (deflection <0.5mm @ 50N load)
Vibration Resistance: Withstands 20G vibration (MIL-STD-202G)
Thermal Resilience: Tg 140°C thermal resilience at 40% lower cost than exotic laminates
Flexible Copper Options: 1oz/2oz copper options (35μm/70μm) for power-hungry designs
Ideal Applications
  • Optoelectronic Systems: LiDAR, IR sensors, endoscopic cameras
  • Consumer Tech: Premium wearables, gaming hardware, AR/VR
  • Auto & Aerospace: Cockpit displays, flight control modules
  • Industrial: Robotics control boards, HMI panels
"We used black 1mm FR4 for a military comms device—not just for stealth. The thickness handled shock tests green boards failed, saving 6 weeks of redesign."
- Senior RF Designer, Defense Contractor
Black FR4 1MM Double Sided PCB Board 1OZ Copper 0
