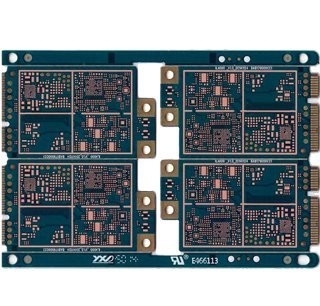

8 Layer HDI PCB 32u Gold Finger High TG180 Multilayer

8 Layer HDI PCB 32u Gold Finger High TG180 Multilayer

  • Vurgulamak

    HDI High TG PCB

    ,

    Goldfinger High TG PCB

    ,

    Multilayer pcb goldfinger

  • Katman sayısı
    8
  • Adım sayımı
    1
  • Sona ermek
    Altın parmak
  • Kalınlık
    32U
  • Teknoloji
    HDI
  • Ürün türü
    PCB
  • Place of Origin
    Shenzhen,China
  • Marka adı
    ONESEINE
  • Sertifika
    ISO9001,ISO14001
  • Model Number
    ONE-102
  • Minimum Order Quantity
    1pcs
  • Fiyat
    USD0.1-1000
  • Packaging Details
    Vacuun bag
  • Delivery Time
    5-8 working days
  • Payment Terms
    T/T,Western Union
  • Supply Ability
    1000000000pcs/mon

8 Layer HDI PCB 32u Gold Finger High TG180 Multilayer

32u HDI Multilayer High TG180 PCB Fabrication Goldfinger 8 Layers
Product Specifications
Attribute Value
Layer Count 8
Step Count 1
Finish Gold Finger
Thickness 32u
Technology HDI
Product Type PCB
PCB Parameters
  • Plate used: FR-4
  • Number of layers: 8
  • Board thickness: 1.0+/-0.1mm
  • Surface treatment: Immersion gold, OSP, electric gold finger 32u
  • Application area: memory board
  • Features: Drilling 1-3 4-5 6-8
High-Performance 8-Layer HDI PCBs

Our 32μm HDI multilayer PCBs with 1-step gold fingers are engineered for mission-critical applications in aerospace, medical, and defense systems where conventional PCBs fail.

Key Advantages:
  • 50μ" Hard Gold plating (5× industry thickness)
  • Laser-drilled 32μm microvias with 1:1.2 aspect ratio
  • ±3% impedance control @ 40GHz
  • Tg180 FR4/High-Speed Hybrid stackups
Gold Finger Technology
  • 1-Step Electrolytic Plating with 50μ" gold hardness >200HK
  • 300K mating cycles @ 50N force (MIL-G-45204 compliant)
  • Precision laser-cut bevels: 30°±0.5° with Ra<0.1μm
  • 360° wrap-around plating prevents edge cracking
32μm HDI Breakthroughs
  • Microvia-in-Pad supports 0.15mm pitch BGA
  • Stacked microvias with 8:1 aspect ratio for 16Gb/s signals
  • 100% void-free copper via fill (X-ray verified)
Signal Integrity Features
  • Hybrid Dk Control: εr=3.48±0.02 (1-40GHz)
  • Near-Zero Loss: <0.002dB/mm @ 110GHz
  • EMI Shielding: -55dB crosstalk via hatched grounds
Certified Applications
Surgical Robotics
  • 0.008mm² misregistration
  • ISO 13485 compliant
  • 1,000 autoclave cycle rating
Satellite RF Switches
  • Ka-band beamforming
  • PIM <-168dBc @ 2x43dBm
  • NASA-STD-8739.4 certified
Industrial Backplanes
  • 250K hot-swap cycles
  • 25Gbps ARINC 818 compatible
  • UL 94V-0 + IP68 rating
Manufacturing Advantages
  • 10-Day Prototypes with full test reports
  • 25-Day Volume Production (30k panels/month capacity)
  • 45% cost savings vs. North American fabs
  • Free HDI DFM analysis (IPC-2226 compliant)
  • Signal integrity simulations (HFSS 3D)
  • On-site failure forensics
