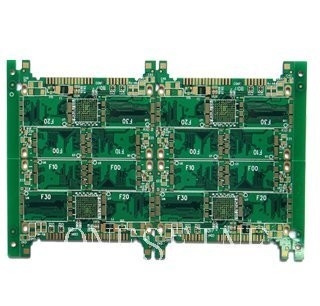

ENIG FR5 1.55MM HDI Mcpcb 94vo Circuit Board PCB Manufacturing
Product Specifications
Attribute |
Value |
Product |
Fr5 PCB |
Layer |
6 layer |
Surface Finish |
ENIG |
Quality |
High quality |
Minimum Solder Mask Opening |
0.1 mm |
Shipping |
DHL UPS TNT Fedex EMS |
Quotation Need |
Gerber File |
Outline Profile |
Rout/ V-cut/ Bridge/ Stamp Hole |
Technical Parameters
Layer count: 6
Materials: FR-5
Thickness: 1.55MM
Copper foil thickness: 35UM
Surface finish: ENIG 1U"
Min finish via dia: 0.25mm
Min width/Spacing: 0.152MM/0.97MM
HDI PCB Design Guidelines
Follow these key considerations for optimal characteristic impedance in your HDI PCB design:
- PCB Material Selection: Choose materials with consistent dielectric constant for accurate impedance values
- Layer Stackup: Maintain uniform dielectric thickness and avoid abrupt changes in material
- Trace Geometry: Follow manufacturer guidelines for width, spacing, and thickness
- Differential Pairs: Maintain consistent trace dimensions for balanced impedance
- Via Design: Minimize vias in signal path and use controlled impedance vias when necessary
- Ground Plane Configuration: Ensure solid ground plane with proper stitching vias
- Manufacturing Tolerances: Account for production capabilities in your design
HDI PCB Applications
HDI technology enables advanced solutions across multiple industries:
- Mobile Devices (smartphones, tablets)
- Computing and Networking Equipment
- Medical Devices and Diagnostic Systems
- Automotive Electronics (ADAS, infotainment)
- Aerospace and Defense Systems
- Industrial Automation and IoT Devices
Automotive Implementation Challenges
Key considerations for HDI PCBs in automotive applications:
- Ensuring reliability under harsh environmental conditions
- Maintaining signal integrity with high-speed data transmission
- Effective thermal management for heat dissipation
- Managing manufacturing complexity and costs
- Meeting strict automotive regulatory standards
