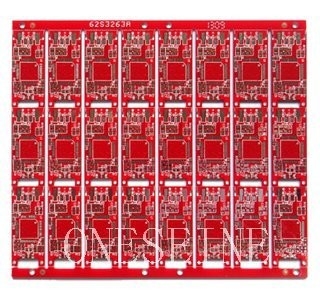

6 Layer HDI PCB Board 35um FR4 for Arduino Uno R3

6 Layer HDI PCB Board 35um FR4 for Arduino Uno R3

  • Vurgulamak

    microvias HDI PCB Fabrication

    ,

    35um HDI PCB Fabrication

    ,

    microvias hdi rigid flex pcb

  • Product Name
    High Quality 6Layer PCB Board
  • Product Attributes
    6L,35um,FR4,arduino uno r3,eagle,Available
  • Thickness
    0.1-6.0mm
  • Finished Copper
    1oz
  • Number Of Layers
    1-48
  • Layers
    2,4,6.8.10 and more
  • Production Name
    OEM
  • Item Type
    HDI PCB
  • Place of Origin
    Shenzhen,China
  • Marka adı
    ONESEINE
  • Sertifika
    ISO9001,ISO14001
  • Model Number
    ONE-102
  • Minimum Order Quantity
    1pcs
  • Fiyat
    USD0.1-1000
  • Packaging Details
    Vacuun bag
  • Delivery Time
    5-8 working days
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    1000000000pcs/mon

6 Layer HDI PCB Board 35um FR4 for Arduino Uno R3

Microvias Rigid Flex HDI PCB Fabrication PCB Board 35um Customized
Product Name High Quality 6Layer PCB Board
Product Attributes 6L,35um,FR4,arduino uno r3,eagle,Available
Thickness 0.1-6.0mm
Finished Copper 1oz
Number Of Layers 1-48
Layers 2,4,6.8.10 and more
Production Name OEM
Item Type HDI PCB
Any Layer HDI 6Layer PCB Board With Arduino Uno R3 Eagle Software Drawing
Product Parameters
  • Number of layers: 6 layers
  • Material: FR-4
  • Finished product thickness: 1.20mm
  • Finished copper foil thickness: 35UM
  • Surface treatment: Immersion gold 1U"
  • Minimum aperture: 0.2MM
  • Minimum line width and distance: 0.1MM/0.1MM
HDI PCB Design Guidelines for Characteristic Impedance
  • PCB Material Selection: Choose dielectric material with known, consistent dielectric constant for accurate impedance values.
  • Layer Stackup: Maintain consistent dielectric thickness between signal layers and uniform stackup configuration.
  • Trace Geometry: Follow manufacturer guidelines for trace width, spacing, and thickness to achieve desired impedance.
  • Differential Pairs: Maintain consistent trace widths, spacing, and length matching for balanced impedance.
  • Via Design: Minimize vias in signal path; use controlled impedance vias when necessary.
  • Ground Plane Configuration: Ensure solid ground plane with proper stitching vias for signal integrity.
  • Manufacturing Tolerances: Consider manufacturer capabilities for trace width, spacing, and dielectric thickness tolerances.
HDI PCB Applications
  • Mobile Devices: Smartphones, tablets with integrated processors, memory, and wireless modules.
  • Computing and Networking: Laptops, servers, routers, and data center equipment for high-speed data processing.
  • Medical Devices: Diagnostic machines, imaging systems, and portable medical equipment.
  • Automotive Electronics: ADAS, infotainment systems, and vehicle connectivity solutions.
  • Aerospace and Defense: Avionics, satellites, radar systems, and military communication equipment.
  • Industrial and IoT: Automation systems, smart home devices, and environmental monitoring solutions.
Challenges in Automotive HDI PCB Implementation
  • Reliability: Withstanding harsh automotive environments including temperature variations and vibrations.
  • Signal Integrity: Managing crosstalk and impedance matching in high-density designs.
  • Thermal Management: Effective heat dissipation in high-power density applications.
  • Manufacturing Complexity: Precision requirements for microvias and fine-pitch components.
  • Cost Considerations: Balancing advanced technology requirements with production budgets.
  • Regulatory Compliance: Meeting stringent automotive safety and reliability standards.
