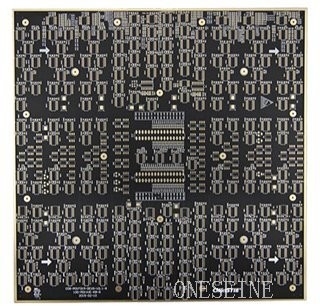

2 Layer Black Soldermask PCB Board FR4 CEM-3 Material

2 Layer Black Soldermask PCB Board FR4 CEM-3 Material

  • Vurgulamak

    CEM-3 hdi flex pcb

    ,

    FR4 hdi flex pcb

    ,

    CEM-3 hdi multilayer pcb

  • Product Name
    2 Layer Black Soldermask PCB Board
  • Material
    FR-4, FR-4 High Tg, Polyimide
  • Color
    Black
  • Tolerance Of Pcb
    ±5%
  • Pcb Standard
    IPC-A-610 D
  • Bga
    7mil
  • Special
    Can be customized
  • Place of Origin
    Shenzhen,China
  • Marka adı
    ONESEINE
  • Sertifika
    ISO9001,ISO14001
  • Model Number
    ONE-102
  • Minimum Order Quantity
    1pcs
  • Fiyat
    USD0.1-1000
  • Packaging Details
    Vacuun bag
  • Delivery Time
    5-8 working days
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    1000000000pcs/mon

2 Layer Black Soldermask PCB Board FR4 CEM-3 Material

CEM-3 High Density Interconnect HDI Flex PCB FR4 Circuit Board Multilayer
Product Specifications
Attribute Value
Product Name 2 Layer Black Soldermask PCB Board
Material FR-4, FR-4 High Tg, Polyimide
Color Black
Tolerance Of PCB ±5%
PCB Standard IPC-A-610 D
BGA 7mil
Special Can be customized
8Layer CEM-3 Material HDI High Density Interconnect FR4 PCB Circuit Board
PCB Parameters:
PCB material: CEM-3
Product name: automotive electronics PCB
Layer: 8
Surface finish: ENIG
Copper weight: 1OZ
Line width: 6mil
Thickness: 1.6mm
The Difference Between CEM-3 and FR-4
CEM-3 is a composite copper clad laminate that uses a combination of glass cloth and glass mat, while FR-4 uses only glass cloth. CEM-3 offers similar performance to FR-4 with advantages in drill bit wear rate, punching and press forming, and dimensional accuracy. Both materials meet the same standards for glass transition temperature, immersion resistance, peeling strength, and electrical properties.
Determining Characteristic Impedance in HDI PCB Design
Two primary methods exist for calculating characteristic impedance:
  • Empirical Formulas: Provide approximate calculations using simplified assumptions, suitable for initial estimates.
  • Field Solver Simulations: Offer precise results by considering specific layer stackup, trace geometry, and material properties, recommended for high-frequency applications.
HDI PCB Applications
  • Mobile Devices: Smartphones, tablets with integrated processors and sensors
  • Computing Equipment: Laptops, servers, networking devices
  • Medical Devices: Diagnostic machines, patient monitoring systems
  • Automotive Electronics: ADAS, infotainment systems
  • Aerospace/Defense: Avionics, radar systems
  • Industrial IoT: Automation, smart home devices
Challenges in Automotive HDI PCB Implementation
  • Ensuring reliability under harsh environmental conditions
  • Maintaining signal integrity with high-speed data transmission
  • Effective thermal management for heat dissipation
  • Complex manufacturing processes requiring specialized equipment
  • Balancing cost with performance requirements
  • Meeting strict automotive regulatory standards
