94V0 Metal Core MCPCB for LED Lighting 1.5W/mK Thermal Conductivity

94V0 Metal Core MCPCB for LED Lighting 1.5W/mK Thermal Conductivity

Ürünler - Mcpcb Board
  • Vurgulamak

    94V0 led light mcpcb

    ,

    ROHS led light mcpcb

    ,

    94V0 led metal core pcb

  • Yüzey kaplaması
    Hasl
  • Dielektrik sabiti
    4.0
  • Kalınlık
    0,8 mm
  • UL Sertifikası
    94V-0
  • Başvuru
    LED aydınlatma
  • Termal iletkenlik
    1.5W/mk
  • Malzeme
    Metal çekirdeği
  • Katman sayısı
    Tek katman
  • ROHS uyumlu
    Evet
  • Silk ekranlı renk
    Siyah
  • Lehim maske rengi
    Beyaz
  • Min çalışma sıcaklığı
    -40 ° C
  • Maksimum çalışma sıcaklığı
    130 ° C
  • Bakır kalınlığı
    1 oz
  • Place of Origin
    Shenzhen,China
  • Marka adı
    ONESEINE
  • Sertifika
    ISO9001,ISO14001
  • Model Number
    ONE-102
  • Minimum Order Quantity
    1pcs
  • Fiyat
    USD0.1-1000
  • Packaging Details
    Vacuun bag
  • Delivery Time
    5-8 working days
  • Payment Terms
    T/T,Western Union
  • Supply Ability
    1000000000pcs/mon

94V0 Metal Core MCPCB for LED Lighting 1.5W/mK Thermal Conductivity

  • 94V0 Metal Core MCPCB for LED Lighting 1.5W/mK Thermal Conductivity
Fiyat Al Şimdi başvurun
Metal Core OSP 94V0 LED Light MCPCB
High-performance PCB for electronics with ROHS compliance
Product Specifications
Attribute Value
Surface Finish HASL
Dielectric Constant 4.0
Thickness 0.8mm
UL Certification 94V-0
Application LED Lighting
Thermal Conductivity 1.5W/mK
Material Metal Core
Layer Count Single Layer
Rohs Compliant Yes
Silkscreen Color Black
Solder Mask Color White
Min Operating Temperature -40°C
Max Operating Temperature 130°C
Copper Thickness 1oz
Customized Copper Core Metal Core PCB
Designed for high-power electronics applications
Key Parameters
  • Brand: Oneseine
  • Application: Full range of fluorescent lamps
  • Maximum size: 1500mm
  • Substrate material: Aluminum
  • Thickness range: 0.6-2.0mm
  • Copper foil thickness: 18-70μm
  • Surface treatment: OSP/HAL/HASL (Lead free)
  • Thermal conductivity: 1.0 - 3.0W/m.k
  • Breakdown voltage: 1.0-3.0KV(AC)
  • Flammability: 94V0
  • Standards: UL & ROHS compliant
Manufacturing Process
Stage 1: Base Preparation
  • Material: 5052/6061 Al or C1100 Cu
  • Surface Treatment: Alkaline wash → Anodization (Al) / Antioxidant coating (Cu)
  • Flatness Tolerance: ≤0.1mm/m²
Stage 2: Dielectric Lamination
  • Standard Materials: Bergquist HT-04503 (100μm), Laird Tputty506 (150μm)
  • Thermal Resistance: <0.3°C-in²/W
  • Breakdown Voltage: >3kV AC
Stage 3: Circuit Fabrication
  • Copper Weight Options: 1oz (35μm) to 10oz (350μm)
  • Etching Precision: ±10% line width tolerance
  • Min. Trace/Space: 0.15mm/0.15mm (LDI process)
Stage 4: Thermal Management Features
  • Via Fill: Conductive epoxy (0.8-1.5 W/mK)
  • Plated Through Holes: Aspect ratio 8:1 max
  • Edge Plating: 360° coverage for chassis grounding
Quality Validation Protocol
Thermal Cycling
  • Condition: -55°C ↔ +150°C, 500 cycles (IPC-TM-650 2.6.7)
  • Acceptance: No delamination, <5% resistance change
Thermal Resistance Test
  • Method: ASTM D5470
  • Standard: θja <1.5°C/W (for 1.0mm Al core)
High-Potential Test
  • Voltage: 3kV AC, 60s (UL 796)
  • Leakage: <5mA

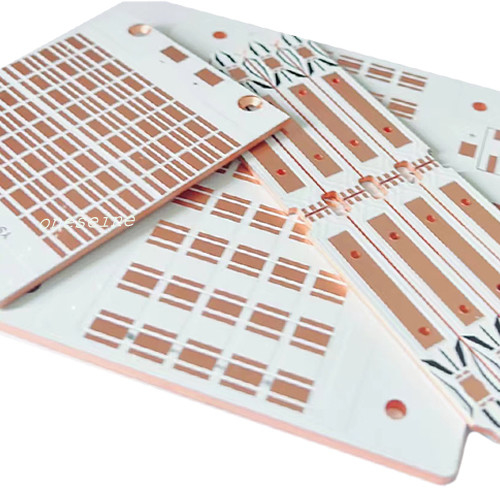

94V0 Metal Core MCPCB for LED Lighting 1.5W/mK Thermal Conductivity 0
