1oz Single Sided Aluminum MCPCB Board for LED Tube Lights

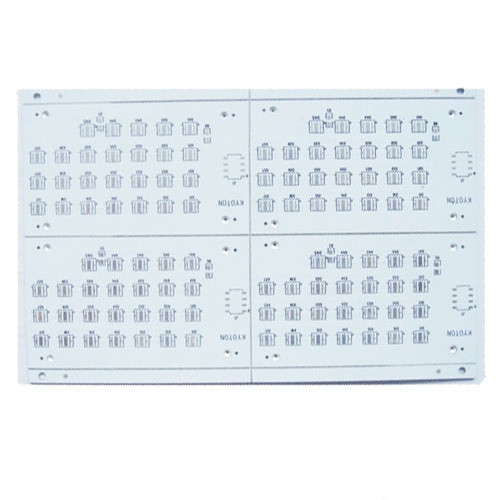

1oz Single Sided LED Tube Light MCPCB Board Prototype Metal Core Design
Product Specifications
| Attribute | Value |
|---|---|
| Material | Aluminum |
| PCB Type | Metal Core PCB |
| Sidedness | Single Sided |
| Copper | 35um/1oz |
| Surface Finish | HASL, ENIG, OSP |
| Thermal Conductivity | 3.0W |
| Solder Mask Color | Green, Black, White |
| Surface Finished | OSP/Custom |
Aluminum Core LED MC Single Sided PCB Board Prototype
This high-performance aluminum PCB is specifically designed for LED applications requiring efficient heat dissipation and reliable electrical performance.
Detailed Specifications
- Layer: 1
- Material: Aluminum (metal core)
- Thermal conductivity: 0.8, 1.5, 2.0, 3.0 W/m.K
- Thickness: 0.5-3mm
- Copper thickness: 0.5-10OZ
- Outline: Routing, punching, V-Cut
- Solder mask: White/Black/Blue/Green/Red Oil
- Legend/Silkscreen Color: Black/White
- Surface finishing: Immersion Gold, HASL, OSP
- Max Panel size: 600*500mm
- Packing: Vacuum/Plastic bag
- Application: LED lighting systems
LED Aluminum PCB Characteristics
Aluminum PCBs provide the optimal solution for LED heat dissipation challenges. The high thermal conductivity of aluminum effectively exports internal heat, making it ideal for LED applications.
Our aluminum PCBs feature a unique metal-based CCL with excellent thermal conductivity, electrical insulation properties, and machinability. Designs should minimize thermal resistance by keeping components close to the aluminum base.
Aluminum PCB Variants
Aluminum PCB Board
Al PCB
Aluminum Base PCB
LED PCB
Circle Aluminum PCB
LED Strip Aluminum PCB
Lighting Aluminum PCB
Key Advantages
- High thermal conductivity (2.0~3.0 W/mk)
- Thick dielectric capability (102mm~305mm)
- Ideal for LED street lights, large format LCD TVs, and general lighting
- Excellent heat dissipation properties
- Durable aluminum construction
Aluminum PCB Structure
Our aluminum PCBs feature a three-layer construction:
- Circuit Layer: Standard copper clad laminate (1oz to 10oz copper foil)
- Dielectric Layer: UL-certified thermal insulation material (0.003" to 0.006")
- Base Layer: Aluminum or copper core (30 mil - 125 mil standard thickness)
