Bergquist Mcpcb Board
,0.1mm Mcpcb Board
,Bergquist led metal core pcb
-
Tahta kalınlığı0.4-3.2mm
-
Ticaret şartlarıEski çalışma, DDU'dan kapıya, odak
-
ÖzellikYüksek termal iletkenlik
-
Kurşun zamanı3-5 gün
-
Minimum delik boyutu0.2 mm
-
TipÖzelleştirilmiş
-
CU kalınlığı2/0oz
-
Minimum çizgi genişliği/aralığı0.1 mm
-
KullanmakLED aydınlatma
-
Bakır35um
-
Place of OriginShenzhen,China
-
Marka adıONESEINE
-
SertifikaISO9001,ISO14001
-
Model NumberONE-102
-
Minimum Order Quantity1pcs
-
FiyatUSD0.1-1000
-
Packaging DetailsVacuun bag
-
Delivery Time5-8 working days
-
Payment TermsT/T,Western Union
-
Supply Ability1000000000pcs/mon

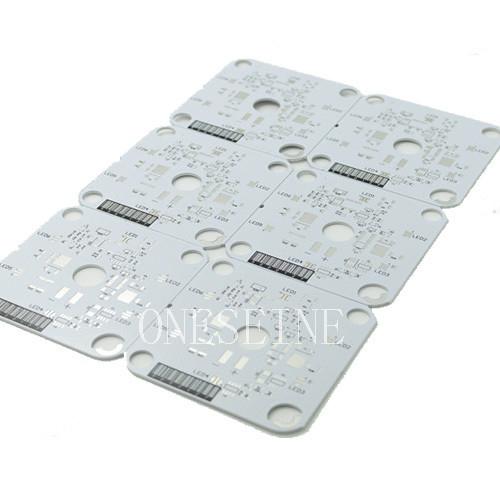

Bergquist Aluminum MCPCB Board for LED Lighting 0.1mm Line Width
Bergquist Aluminum Base MCPCB Board LED Metal Core PCB 0.1mm
Product Specifications
| Attribute | Value |
|---|---|
| Board Thickness | 0.4-3.2mm |
| Trade Terms | EX-WORK, DDU TO DOOR, FOC |
| Feature | High Thermal Conductivity |
| Lead Time | 3-5 days |
| Minimum Hole Size | 0.2mm |
| Type | Customized |
| Cu Thickness | 2/0oz |
| Minimum Line Width/Spacing | 0.1mm |
| Use | LED lighting |
| Copper | 35um |
Product Description
Thermal Clad Bergquist HT-07006 Aluminium PCB MC printed circuit boards
Basic Information
- Layer: 1
- PCB board thickness: 1.6mm
- Surface finish: OSP
- Material: Bergquist aluminium PCB material
- PCB board size: 7*5cm
- Copper weight: 2OZ
- Solder mask: Green
- Silk screen: White
Bergquist Thermal Clad Printed Circuit Boards (PCB)
Bergquist Aluminum base copper-clad laminate features excellent flame retardant properties, high mechanical strength, and dimensional stability. It provides superior heat dissipation, electromagnetic shielding, and solder float capabilities.
Applications include motorcycle and mobile modifiers, power LEDs, sound boxes, power supply modules, and acoustic shielding systems.
Key Features
- Thermal conductivity: 2.2 W/m.k
- Dielectric Thickness: 76um (3mil)
- Breakdown AC: 8.5KV
- Short lead time manufacturing
- Raw material in stock
Thermal Clad PCB Material Options
- Bergquist
- Thermagon
- Arlon
- Denka
Technical Specifications
- 1 & 2 Layer Dielectrics
- Up to 5 oz finished Cu
- Al and CU base material up to .250" thick
- HASL, ENIG and Pb Free HASL finish available
Product Benefits
- Lower operating temperatures
- Improved product durability
- Increased power density
- Enhanced thermal efficiency
- Reduced number of interconnects
- Lower junction temperatures
- Compact PCB size
- Minimized assembly labor
- Wide variety of form factors
- Minimized thermal impedance
