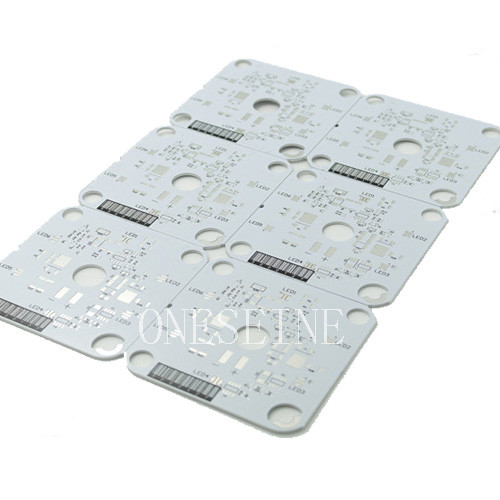

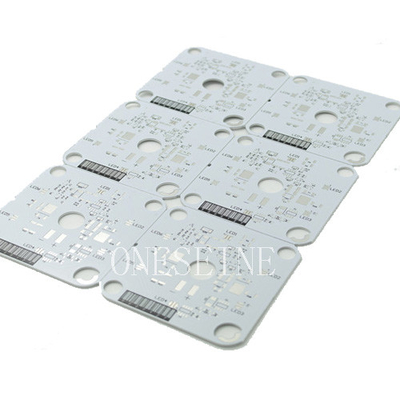

White Bergquist MCPCB 12W Aluminium Core Circuit Board

Attribute	Value
Dielectric Constant	3.0-4.5
Surface Finishing	HASL
Min. Hole Size	0.2mm
Cu Thickness	2/0oz
Overlay	White
Layer Number	1~14L
Surface Finish	HASL, ENIG, OSP, Immersion Silver, Immersion Tin
Finish Hole	0.10mm-6.30mm
Outline	CNC and V-cut
Board Thickness	0.4mm-3.2mm

• Layer: 1
• PCB board thickness: 1.6mm
• Surface finish: OSP
• Material: Bergquist aluminium PCB material
• PCB board size: 7*5cm
• Copper weight: 2OZ
• Solder mask: Green
• Silk screen: White

Bergquist Aluminum base copper-clad laminate features excellent flame retardant properties, high mechanical strength, and dimensional stability. It provides superior heat dissipation, electromagnetic shielding, and solder float performance.

Widely used in motorcycle and mobile modifiers, power LEDs, sound boxes, power supply modules, and acoustic shielding systems.

• Lower operating temperatures
• Improved product durability
• Increased power density
• Enhanced thermal efficiency
• Reduced number of interconnects
• Lower junction temperatures
• Compact PCB size

Available with Bergquist, Thermagon, Arlon, or Denka thermal clad materials.

• 1 & 2 Layer Dielectrics
• Up to 5 oz finished Cu
• Al and CU base material up to .250" thick
• HASL, ENIG and Pb Free HASL finish available

Our aluminum PCBs feature a thermal clad layer that efficiently dissipates heat, cooling components and enhancing overall product performance. With 10+ years of manufacturing experience, we produce high-quality aluminum circuit boards for LED lighting, power equipment, and automotive systems.

• Aluminum Core PCBs: Most common type with good thermal conductivity and cost-effectiveness
• Copper Core PCBs: Higher thermal conductivity for demanding applications
• Iron Core PCBs: Better magnetic properties for power electronics
• Composite Core PCBs: Balanced thermal and mechanical properties
• Ceramic Core PCBs: Superior thermal performance for high-power applications
• Flexible Metal Core PCBs: Combines thermal management with flexibility

Our metal core PCB manufacturing follows rigorous quality standards:

• Precision design with thermal considerations
• Material selection and base layer preparation
• Lamination with thermally conductive dielectric
• Copper cladding and circuit patterning
• Precision drilling and plating
• Quality surface finishing
• Comprehensive testing and inspection

Standard thickness ranges from 0.8mm to 3.2mm, with aluminum core thickness typically between 0.5mm to 3.0mm. Custom thicknesses available for specific application requirements.
