FR4 High TG Double Side PCB with 2oz Copper

FR4 High TG Double Side PCB with 2oz Copper

Ürünler - Yüksek TG PCB
  • Vurgulamak

    2oz Copper High TG PCB

    ,

    Fiberglass High TG PCB

    ,

    FR4 epoxy glass pcb

  • malzeme
    Fr4
  • katmanlar
    çift taraf
  • Copper_thickness
    2 oz
  • Tanım
    FR4 Çift taraflı fiberglas 2oz bakır PCB kartı
  • Lehim maskesi
    Yeşil
  • Yüzey tedavisi
    OSP, daldırma altın, daldırma tenekesi
  • Min. Hat genişliği/boşluk
    0.1mm/0.1mm
  • Teslimat
    DHL, FedEx, TNT vb.
  • Place of Origin
    Shenzhen,China
  • Marka adı
    ONESEINE
  • Sertifika
    ISO9001,ISO14001
  • Model Number
    ONE-102
  • Minimum Order Quantity
    1pcs
  • Fiyat
    USD0.1-1000
  • Packaging Details
    Vacuun bag
  • Delivery Time
    5-8 working days
  • Payment Terms
    T/T,Western Union
  • Supply Ability
    1000000000pcs/mon

FR4 High TG Double Side PCB with 2oz Copper

  • FR4 High TG Double Side PCB with 2oz Copper
Fiyat Al Şimdi başvurun
Epoxy Glass FR4 High TG PCB Double Side Fiberglass 2oz Copper Circuit Board
Product Specifications
Attribute Value
Material FR4
Layers Double side
Copper Thickness 2oz
Solder Mask Green
Surface Treatment OSP, Immersion Gold, Immersion Tin
Min. Line Width/Spacing 0.1mm/0.1mm
Delivery DHL, Fedex, TNT etc.
PCB Parameters
  • Material: FR4 fiberglass board
  • Number of layers: double-sided
  • Board thickness: 2.0mm
  • Copper thickness: 2oz
  • Surface treatment process: lead-free
  • Solder mask character color: green and white
  • Minimum line width/line spacing: 11.81/9mil
  • The smallest hole: 0.5mm
  • Technical features: Level 3 standard
High-Temperature Performance

Our double-sided FR4 boards are engineered for extreme conditions:

  • Tg 170°C+ Epoxy Glass Core - Withstands soldering peaks of 260°C and survives -55°C to 150°C thermal cycling
  • 2oz Copper Construction - Double the current-carrying capacity versus standard 1oz, reducing hotspots in high-power circuits
  • Fiberglass-Reinforced - Moisture absorption < 0.1% with UL 94V-0 flame-retardant certification
Proven Applications
  • Auto & EV: Battery management systems, onboard chargers
  • Industry 4.0: PLCs, motor drives, HMI controllers
  • Energy: Solar inverters, charging control modules
  • Medical: Sterilizable equipment, imaging systems
"These boards are like ceramic armor - we get FR4's cost with high-reliability material performance."
- Lead Engineer, Industrial Automation Firm

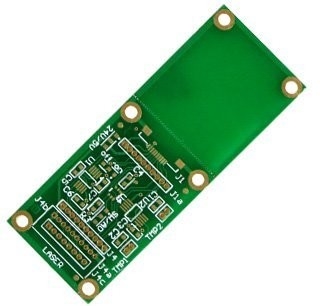

FR4 High TG Double Side PCB with 2oz Copper 0
