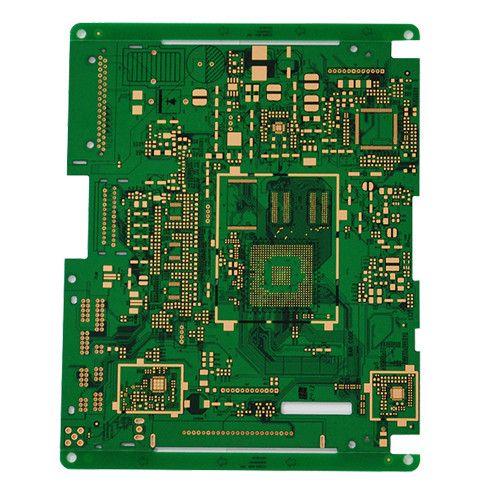

FR4 1080 HDI PCB Circuit Board 1.2mm with Blind Buried Vias

FR4 1080 HDI PCB Circuit Board 1.2mm with Blind Buried Vias

  • Vurgulamak

    FR4 high density interconnect hdi pcb

    ,

    1080 high density interconnect hdi pcb

    ,

    HDI prototype board pcb

  • Product description
    pcb layout tutorial how to make pcb layout pcb layout software pcb layout diagram pcb layout online pcb layout design pdf how to make pcb layout from circuit diagram pcb layout service
  • Board Thickness
    1.2mm
  • Min Hole Size
    0.1mm
  • Material
    FR4
  • Material Brand
    SY S1000H
  • Solder Mask
    green
  • Profiling Punching
    Routing, V-CUT, Beveling
  • Drill
    Blind & Buried Vias
  • Place of Origin
    Shenzhen,China
  • Marka adı
    ONESEINE
  • Sertifika
    ISO9001,ISO14001
  • Model Number
    ONE-102
  • Minimum Order Quantity
    1pcs
  • Fiyat
    USD0.1-1000
  • Packaging Details
    Vacuun bag
  • Delivery Time
    5-8 working days
  • Payment Terms
    T/T,Western Union
  • Supply Ability
    1000000000pcs/mon

FR4 1080 HDI PCB Circuit Board 1.2mm with Blind Buried Vias

FR4 1080 High Density Interconnect HDI PCB Circuit Board Prototype One Stop 1.2mm
Product Specifications
Attribute Value
Board Thickness 1.2mm
Min Hole Size 0.1mm
Material FR4
Material Brand SY S1000H
Solder Mask Green
Profiling Punching Routing, V-CUT, Beveling
Drill Blind & Buried Vias
Product Overview

FR4 1080 Circuit Board Material One Stop PCB 1.2mm Layout Design with high-quality FR4 PCB substrate and ENIG surface finish.

Key Parameters
  • PCB material: FR4 PCB substrate
  • Board thickness: 1.6mm
  • Board size: 16*22CM
  • Surface finish: ENIG
PCB Design Process

Our professional PCB design process includes schematic design, component database setup, block division, component configuration, wiring, and final inspection.

PCB Design Steps
  1. Schematic design using PROTEL software
  2. Component package generation and verification
  3. Formal PCB generation with DRC check
  4. PCB printout and transfer to copper board
  5. Board etching and final processing
Our PCB Services
  • Single-sided, double-sided, and multi-layer boards
  • Rigid and flexible circuits
  • Surface mount, through-hole, mixed technology
  • Design for manufacturability (DFM)
  • Design for testability (DFT)
  • Design for EMC
Modern PCB Design

Modern PCBs are designed with dedicated layout software including schematic capture, layer stack determination, component placement, signal routing, and Gerber file generation.

FR4 PCB Material Properties

FR-4 is a high-strength, flame-retardant, glass-reinforced epoxy laminate material used for PCB fabrication with excellent thermal and electrical properties.

Standard FR-4 Material Properties
  • High Glass Transition Temperature (150Tg or 170Tg)
  • High Decomposition Temperature (> 345°C)
  • Low Coefficient of Thermal Expansion (2.5%-3.8%)
  • Dielectric Constant (@1 GHz): 4.25-4.55
  • Dissipation Factor (@ 1 GHz): 0.016
  • UL rated (94V-0, CTI = 3 minimum)
FR4 PCB Applications

FR-4 PCBs are widely used in consumer electronics, telecommunications, automotive, industrial equipment, and more due to their excellent thermal stability, mechanical strength, and resistance to moisture and chemicals.
