4 Layer Industrial Control PCB ENIG Surface Multilayer Circuit Board
-
Vurgulamak
ENIG polyimide pcb
,Rohs polyimide pcb
,ENIG rohs circuit board
-
Ürün türüpcb
-
Katman Sayısı4
-
IPC Derecesi3. sınıf
-
Minimum Delik Boyutu0.2 mm
-
Serigrafi RengiBeyaz, Siyah, Sarı vb.
-
Çekirdek2 adet
-
YüzeyIvır zıvır
-
Kullanılabilir servisOEM Kabul Edilebilir
-
Place of OriginShenzhen,China
-
Marka adıONESEINE
-
SertifikaISO9001,ISO14001
-
Model NumberONE-102
-
Minimum Order Quantity1pcs
-
FiyatUSD0.1-1000
-
Packaging DetailsVacuun bag
-
Delivery Time5-8 working days
-
Payment TermsT/T,Western Union
-
Supply Ability1000000000pcs/mon

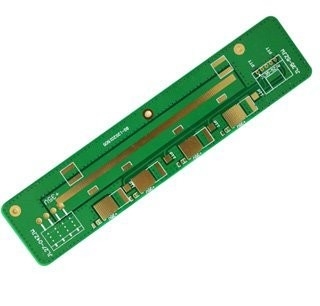

4 Layer Industrial Control PCB ENIG Surface Multilayer Circuit Board
Industrial Control Multilayer Polyimide PCB Rohs Circuit Board ENIG
Product Specifications
| Attribute | Value |
|---|---|
| Product Type | PCB |
| Layer Count | 4 |
| Ipc Degree | Class 3 |
| Min Hole Size | 0.2mm |
| Silkscreen Color | White, Black, Yellow, etc. |
| Core | 2pcs |
| Surface | ENIG |
| Service Available | OEM Acceptable |
Detailed PCB Parameters
Sheet: Shengyi S1000-2
Board thickness: 1.6+/-0.16mm
Size: 219mm*157.3mm
Minimum aperture: 0.25mm
Minimum hole copper: 25um
Table copper thickness: 35um
Minimum line width: 0.075mm
Minimum line distance: 0.085mm
Surface treatment: Immersion gold
End product: automated production equipment
Industrial-Grade Multilayer PCBs: Precision Engineered for Harsh Environment Automation Systems
The Automation Reliability Solution
Our industrial multilayer PCBs are engineered for relentless reliability in demanding environments:
- 10-32 Layer Stackups: Isolate analog/digital/power domains
- Tg180+ FR4/High-Frequency Hybrids: Survive 150°C ambient temperatures
- 3-20oz THICKCOPPER® Power Planes: Handle 500A+ motor currents
- IP68 Conformal Coating: Resists chemicals, moisture & dust
Key Advantages
- Extreme Environment Resilience: Withstands 5× reflow cycles at 260°C, 5.8 W/mK thermal conductivity, ENIG + Au-flashed edge connectors
- Noise-Immune Signal Integrity: -40dB EMI reduction, ±5% impedance control for 1Gbps EtherCAT/PROFINET
- Manufacturing-Proof Construction: IPC-CC-830B certified conformal coating, 500+ insertion cycles, aramid reinforcement
Mission-Critical Applications
- Robotic Control Systems: 16-layer stack with 6oz power planes, 0.3μs servo loop latency
- PLC Backplanes: 32-layer modular design with hot-swap power redundancy
- Motor Drive Inverters: 20oz copper/ceramic hybrids with 99.2% efficiency at 100kW
- Pharmaceutical Fillers: IP69K stainless steel finish, FDA GMP compliant
Manufacturing Excellence
- Material Science: Halogen-free high-Tg laminates, nanoceramic-filled dielectrics
- Precision Fabrication: 25μm trace accuracy, ±0.002mm tolerances
- Validation Protocol: 1,000hr HALT testing, 500G shock resistance
"Their 18-layer PLC backplanes cut our automotive production line failures by 92%. The 20oz copper planes handled 480V/400A surges that melted competitors' boards."
- Automation Director, Top-3 Automotive OEM
- Automation Director, Top-3 Automotive OEM
Certifications
UL 94V-0 • IEC 61131-2 • CE/EMC Directive • ISO 13849 (SIL 3) • RoHS 3
Get Started
Request Harsh Environment Design Kit Get 5-Day Prototype Download Thermal Calculator
Limited Offer: Free Conformal Coating Samples + IPC-CC-830 Report (Code: INDUSTRIALPCB)
