Rogers Multilayer PCB Board
,0.5OZ Multilayer PCB Board
,order custom pcb Rogers
-
Product NameRogers 5880
-
Thickness0.787mm
-
MaterialFr4
-
Surface FinishGold plated
-
Outer Copper Weight1OZ
-
Inner Copper Weight0.5OZ
-
Size1.2CM
-
SurfaceENIG
-
Place of OriginShenzhen,China
-
Marka adıONESEINE
-
SertifikaISO9001,ISO14001
-
Model NumberONE-102
-
Minimum Order Quantity1pcs
-
FiyatUSD0.1-1000
-
Packaging DetailsVacuun bag
-
Delivery Time5-8 working days
-
Payment TermsT/T, Western Union
-
Supply Ability1000000000pcs/mon

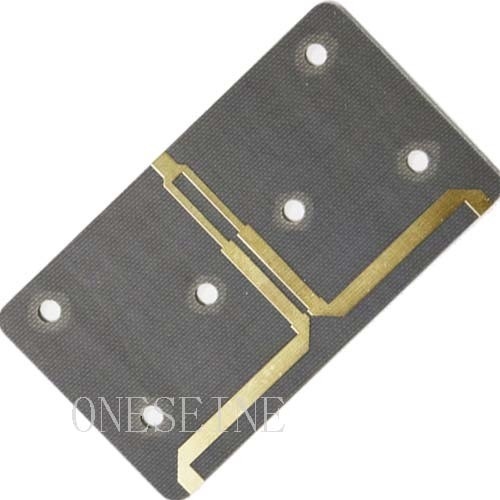

Rogers 5880 Multilayer PCB Board 0.787mm Gold Plated ENIG
Gold Plated Rogers 5880 Multilayer PCB Board 0.5OZ Order Custom
Product Specifications
| Attribute | Value |
|---|---|
| Product Name | Rogers 5880 |
| Thickness | 0.787mm |
| Material | Fr4 |
| Surface Finish | Gold plated |
| Outer Copper Weight | 1OZ |
| Inner Copper Weight | 0.5OZ |
| Size | 1.2CM |
| Surface | ENIG |
Multilayer PCB Fr4 Rogers Printed Circuit Board Material Fabrication
Basic Information
Name: Rogers high frequency printed circuit board fabrication
Material: Rogers 5880 0.787mm+Fr4
Layer: 6
Surface finish: Gold plated
Copper weight: 1OZ outer, 0.5OZ inner
Final thickness: 1.2CM
Stack up file: yes
PCB size: 8*7cm
Material: Rogers 5880 0.787mm+Fr4
Layer: 6
Surface finish: Gold plated
Copper weight: 1OZ outer, 0.5OZ inner
Final thickness: 1.2CM
Stack up file: yes
PCB size: 8*7cm
Rogers Printed Circuit Boards Prototype
We maintain sufficient Rogers raw material inventory including Rogers 3003, 3010, 3006, 4003, 4350, 4360, 5880, and 6010. Contact us for all high frequency printed circuit board requirements.
- 5-day prototype delivery for in-stock materials
- Accurate delivery time estimates for special orders
- Best on-time shipping record in the industry
- Largest technical support team
- Over 800 satisfied active customers
Full Rogers Service PCB Manufacturing
We specialize in designing and manufacturing various FR4 PCBs, with additional expertise in RF Rogers PCBs for applications requiring superior dielectric properties.
- Low cost fabrication with high quality standards
- Precision controlled impedance
- Wide range of dielectric constants available
- Minimized signal and dielectric loss
- Optimized cost with high RF performance
- Lead-free solder processing compatible
- Hybrid FR-4/Rogers multilayer PCB capability
- Enhanced thermal conductivity and management
Multilayer PCB Stack Up
Our multilayer PCB stack-up configurations are carefully designed to ensure optimal electrical performance, signal integrity, impedance control, and thermal characteristics.
Standard stack-up includes:
- Signal layers for electrical routing
- Power and ground planes for stable reference
- Prepreg insulation layers
- Core layer for mechanical stability
- Surface layers for external connectivity
- Soldermask and silkscreen layers
Multilayer PCB Applications
Our multilayer PCBs serve diverse industries with demanding electronic requirements:
- Consumer electronics (smartphones, tablets, TVs)
- Telecommunications infrastructure
- Automotive control systems
- Industrial equipment and automation
- Aerospace and defense systems
- Medical diagnostic equipment
- Power electronics and energy systems
