3D Rigid Multilayer PCB Board
,Kicad Multilayer PCB Board
,Kicad electronic pcb assembly
-
Product TypeMultilayer PCB
-
Layer Count4
-
3D Capable1
-
Material TypeRigid
-
Description4 Layer 3D Rigid PCB Board Fabrication
-
Inquiry1
-
Place of OriginShenzhen,China
-
Marka adıONESEINE
-
SertifikaISO9001,ISO14001
-
Model NumberONE-102
-
Minimum Order Quantity1pcs
-
FiyatUSD0.1-1000
-
Packaging DetailsVacuun bag
-
Delivery Time5-8 working days
-
Payment TermsT/T,Western Union
-
Supply Ability1000000000pcs/mon

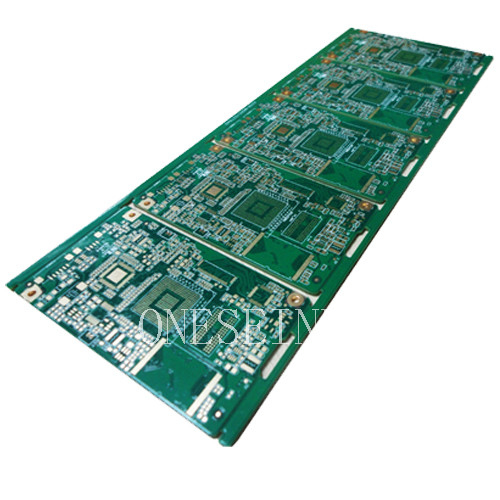

4 Layer 3D Rigid Multilayer PCB Board with White Silkscreen
3D Rigid Kicad Electronic Multilayer PCB Board Assembly White Silkscreen
Product Specifications
| Attribute | Value |
|---|---|
| Product Type | Multilayer PCB |
| Layer Count | 4 |
| 3D Capable | Yes |
| Material Type | Rigid |
Quick Details
| Material | FR4 | Layer | 4 |
| Surface | ENIG | Copper | 70UM |
| Solder mask | Green | Silkscreen | White |
| Min line | 3mil | Min hole | 0.15MM |
PCB Types
Flexible PCB (FPC): Can be bent and flexed during use.
Rigid PCB: Maintains fixed shape and cannot bend.
Rigid PCB Materials
- High frequency material (most expensive)
- FR-1 - Phenolic tissue paper (electric wood)
- FR-2 - Phenolic tissue paper
- FR-3 - Cotton paper with epoxy resin
- FR-4 - Glass cloth with epoxy resin (most common)
- FR-5 - Glass cloth with epoxy resin
- FR-6 - Matte glass with polyester
- G-10 - Glass cloth with epoxy resin
- CEM-1 to CEM-5 - Various composite materials
- AIN - Aluminum nitride
- SiC - Silicon carbide
Metallic Coatings
Common rigid PCB metal coatings include:
- Copper (5-15μm thickness)
- Tin (5-25μm thickness, ~63% tin content)
- Gold (typically for interfaces only)
- Silver (typically for interfaces or silver alloy)
Multilayer PCB Types
- Standard Multilayer PCB: 4-8 layers for general electronics
- HDI PCB: High density with microvias for compact devices
- Flex/Rigid-Flex PCB: Combines flexible and rigid sections
- Sequential Lamination PCB: For complex designs with 10+ layers
- Metal Core PCB: Aluminum/copper core for heat dissipation
- RF/Microwave PCB: Specialized for high-frequency applications
