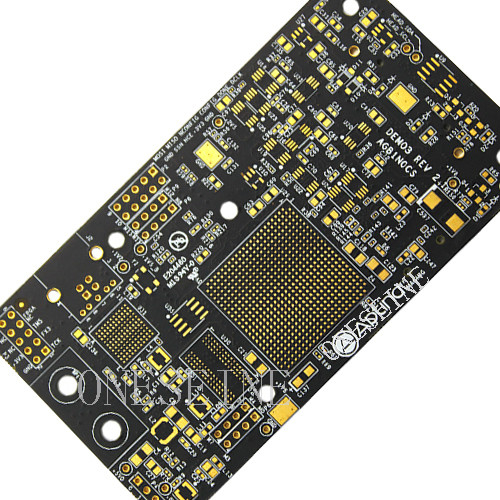

14 Layer HDI PCB with BGA and Via-in-Pad Technology

14 Layer HDI PCB with BGA and Via-in-Pad Technology

  • Vurgulamak

    BGA turnkey pcb assembly

    ,

    HDI turnkey pcb assembly

    ,

    HDI pcb design and fabrication

  • Features
    Vias in Pad,BGA
  • Layer Count
    14
  • Technology
    HDI
  • Type
    Stack Up
  • Min Line Width
    4mil
  • Testing Service
    AOI Fuction
  • Min. Trace/Spacing
    4mil/4mil
  • Min Hole
    0.2MM
  • Insulating Resin
    Epoxy (EP)
  • Finish
    CNC
  • Place of Origin
    Shenzhen,China
  • Marka adı
    ONESEINE
  • Sertifika
    ISO9001,ISO14001
  • Model Number
    ONE-102
  • Minimum Order Quantity
    1pcs
  • Fiyat
    USD0.1-1000
  • Packaging Details
    Vacuun bag
  • Delivery Time
    5-8 working days
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    1000000000pcs/mon

14 Layer HDI PCB with BGA and Via-in-Pad Technology

14 Layer HDI BGA Turnkey PCB Assembly Design And Fabrication High Density
Product Specifications
Attribute Value
Layer Count 14
Technology HDI
Type Stack Up
Features Vias in Pad, BGA
Min Line Width 4mil
Testing Service AOI Function
Min. Trace/Spacing 4mil/4mil
Min Hole 0.2MM
Insulating Resin Epoxy (EP)
Finish CNC
Technical Details
Layer 14 Color Black
Material Fr4 Min hole 0.15
Surface Gold plated Special Vias in pad
Min line 4mil BGA 2
Via-In-Pad Technology Advantages

Via fill enables Via In-Pad implementation, preferred over traditional "dog bone" methods for BGA signal transfer. This active pad process involves filling, planarizing, and plating over vias with copper, offering significant benefits:

  • Tighter BGA pitches for compact designs
  • Enhanced thermal dissipation capabilities
  • Potential reduction in layer count or board size
  • Improved routing density per layer
  • Strengthened pad attachment reliability
  • Optimized high-frequency signal paths to bypass capacitors
  • Solution for high-speed design constraints including low inductance
PCB Construction Materials

Prepreg: Fiber weave impregnated with resin bonding agent, used to adhere core layers (FR4 with copper traces) during high-temperature pressing to achieve required board thickness.

Layer Stackup: Critical substrate determining electrical performance, signal integrity, and reliability. Proper material selection and layer arrangement are essential for optimal functionality.

Multilayer PCB Stackup Configuration

The 14-layer PCB stackup consists of:

  • Signal Layers: Copper trace routing layers sandwiched between power/ground planes
  • Power/Ground Planes: Stable voltage references and return paths to minimize EMI
  • Prepreg Layers: FR-4 insulation between signal layers
  • Core Layer: Central FR-4 layer providing mechanical stability
  • Surface Layers: Outer connectivity for components and soldering
  • Soldermask/Silkscreen: Protective coating and component markings
Multilayer PCB Types
  • Standard Multilayer: 4-8 layer boards for general electronics
  • HDI PCBs: Microvias for high-density interconnects in compact devices
  • Flex/Rigid-Flex: Flexible sections for wearable and medical devices
  • Sequential Lamination: For complex designs requiring 10+ layers
  • Metal Core: Aluminum/copper cores for superior heat dissipation
  • RF/Microwave: Specialized materials for high-frequency applications
Industry Applications
  • Consumer electronics (smartphones, tablets, gaming systems)
  • Telecommunications infrastructure and networking equipment
  • Automotive control systems and ADAS technologies
  • Industrial automation and robotics
  • Aerospace/defense avionics and radar systems
  • Medical diagnostic and monitoring equipment
  • Power electronics and energy conversion systems
