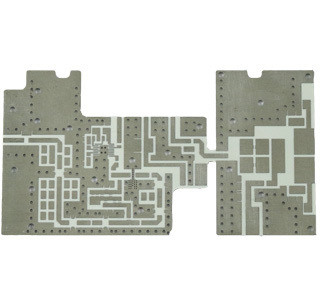

2 Layer Taconic PCB High Frequency Board with Edge Plating
Yellow 2 Layer Taconic PCB Board High Frequency Edge Plating Custom
Product Specifications
| Attribute | Value |
|---|---|
| Product | Taconic PCB |
| Country | China |
| Layer | 2 |
| Color | Grey |
| Special | Edge-plating |
| Test | 100% Electrical Test Prior Shipment |
| Application Area | Communication |
| Silkscreen Color | White, Black, Yellow |
PCB Technical Details
- Number of layers: 2
- Material: Taconic
- Board thickness: 2.0mm
- Surface treatment: Immersion gold
- Minimum aperture: 0.20mm
- Outer line width/line spacing: 5/5mil
- Inner line width/line spacing: 4/4mil
- Features: High frequency circuit board
Rapid-Prototype Taconic RF PCBs | China's Premier 2-Layer High-Frequency Solution
Why Engineers Choose Our Taconic 2-Layer PCBs:
Premium Taconic Laminates: RO3003™/RO4350B™ with stable Dk=3.0-3.66 @ 10GHz (±0.05 tolerance)
Zero-Compromise Prototyping: 1-10 pcs built in 72hrs | No NRE fees | DFM analysis included
China Cost, Global Standards: ISO 9001:2015 | IPC Class 3 | 100% impedance testing (±5%)
High-Frequency Optimized: Laser-cut 0.2mm vias | 1OZ copper | Low-loss surface finishes (ENIG/Immersion Silver)
Critical Applications: 5G test jigs | IoT transceivers | Radar sensors | RFID systems
Prototype Advantage:
- 24hr DFM Feedback: Our engineers optimize your Gerbers for Taconic performance
- Material Flexibility: RO4000®/TLX series laminates stocked
- Testing Included: TDR reports | VSWR validation | S-parameter analysis
Automotive-Grade 77GHz Taconic PCBs | China's High-Frequency Prototype Specialists
Why Global Tier 1s Trust Our 2-Layer Taconic Prototypes:
AEC-Q200 Validated Materials: RO4835™ laminates with stable εr=3.48 @ 10GHz (±0.05) & <0.0037 loss tangent
Zero-Error mmWave Performance: ±2% impedance control @ 80GHz | Laser ablation for 75μm antenna arrays | Plasma-etched via walls for consistent phase response
Automotive Process Rigor: TS 16949 compliant production | 100% thermal shock testing (-55°C to +150°C) | PPAP documentation support
15-Day PPAP Prototyping: Functional 2-layer radar PCBs with material certs & S-parameter reports
Critical Applications:
- 77GHz MIMO Radar Antennas
- Blind Spot Detection PCBs
- Automotive V2X Communication Modules
- Drone Altimetry Sensors
Prototype-to-Production Advantage:
- Free DFM for Taconic: Avoid resonance/PTFE delamination risks
- EM Simulation Support: HFSS models for array optimization
- IP-Sealed Supply Chain: NDAA-compliant material traceability
