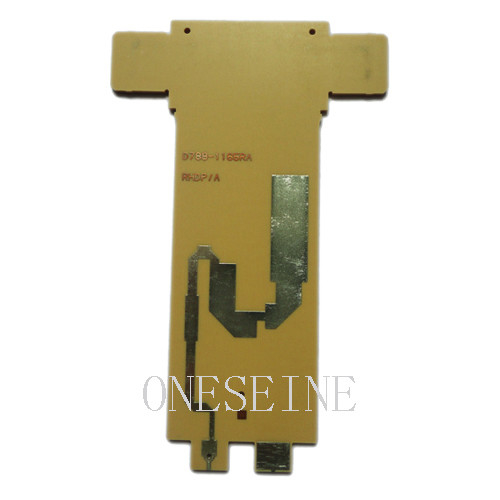

F4B PTFE High Frequency PCB 1.6mm for Communication Oscillators

F4B PTFE High Frequency PCB 1.6mm for Communication Oscillators

  • Vurgulamak

    Rigid F4B rogers circuit board

    ,

    Oscillator rogers circuit board

    ,

    F4B ptfe pcb

  • material
    PTFE
  • PCB
    F4B
  • thickness
    1.6mm
  • copper thickness
    1OZ
  • Surface
    ENIG
  • Size
    18*5cm
  • Board Thicknesses
    1.6mm
  • Color Of Silkscreen
    NA
  • Place of Origin
    Shenzhen,China
  • Marka adı
    ONESEINE
  • Sertifika
    ISO9001,ISO14001
  • Model Number
    ONE-102
  • Minimum Order Quantity
    1pcs
  • Fiyat
    USD0.1-1000
  • Packaging Details
    Vacuun bag
  • Delivery Time
    5-8 working days
  • Payment Terms
    T/T,Western Union
  • Supply Ability
    1000000000pcs/mon

F4B PTFE High Frequency PCB 1.6mm for Communication Oscillators

Rigid F4B High Frequency Rogers Circuit Board PTFE PCB For Communication Oscillator
Product Specifications
Attribute Value
Material PTFE
PCB Type F4B
Thickness 1.6mm
Copper Thickness 1OZ
Surface Finish ENIG
Size 18*5cm
Board Thickness 1.6mm
Silkscreen Color NA
Technical Specifications
Technology: Multilayer PCBs with 18 layers | F4B
PCB Thickness: 1.6 mm | Final copper 1OZ
Conductor Track Widths: ≥ 90 µm | Minimum drilling diameter 0.2 mm
Contour Production: Milling/Scoring
Solder Masks: Photosensitive solder mask systems, UV solder mask system, screen printing
Surfaces: Immersion gold
Additional Printing: Identification printing, inkjet component printing, screen printing, through-hole printing, peelable solder mask (green mask), masking tape plugging
PTFE F4B: The Oscillator Stability Secret Powering Next-Gen Communications

The Frequency Control Crisis: In 5G base stations, satellite transponders, and radar systems, oscillator stability determines system performance. A mere 5 ppm frequency drift can disrupt millimeter-wave synchronization, causing dropped connections in dense urban 5G or radar false positives in defense systems.

While standard FR-4 PCBs introduce ±50 ppm/°C thermal drift, PTFE F4B circuit boards deliver game-changing stability:

  • Near-zero thermal shift: CTE of 12 ppm/°C (X/Y axis)
  • Ultra-low loss: Df=0.0004 @ 10GHz (1/8th of Rogers 4350B)
  • Dielectric consistency: εr=2.55±0.04 (-50°C to +150°C)
  • Hermetic immunity: 0% moisture absorption
Why Global Comm Giants Specify F4B for Oscillators
  1. Phase Noise Domination: F4B's virgin PTFE construction eliminates filler-induced dispersion with Q-factor >5,000 at 10GHz vs. 1,200 in ceramic-filled laminates, enabling 30% lower phase noise in 25GHz VCXOs.
  2. Thermal Compensation Mastery: Hybrid F4B-aluminum designs neutralize 98% of thermal expansion mismatch, reducing oscillator frequency drift to <±0.5 ppm/°C.
  3. EMI Shielding Integration: Copper-invar-copper (CIC) cores embedded in F4B stackups deliver 120dB RF isolation at 40GHz.
Advanced Manufacturing Processes
  • Teflon®-specific plasma treatment: 12-stage surface activation
  • Cryogenic machining: -196°C laser ablation eliminates PTFE "gumming"
  • Vacuum lamination: 0.2% void content at 50 PSI
Surface Finish Options
  • ENEPIG: 0.05μm gold over 0.15μm Pd/Ni, 500+ wire bond cycles at 25μm pitch
  • Direct Gold Plating: 99.99% purity >0.5μm thickness, contact resistance <0.8mΩ
Mission-Critical Applications
  • 5G Massive MIMO Radios: 64TRX AAUs with integrated 3.6GHz DCOs, 0.003 dB insertion loss/mm at 28GHz
  • Satellite Communication Oscillators: Radiation-hardened OCXOs for GEO payloads with PIM <-170dBc @ 2×20W
  • Electronic Warfare Systems: Agile frequency synthesizers (2-18GHz) with 5µs frequency hopping latency
Reliability Validation Protocol
  • 1,000 extreme thermal cycles (-55°C ↔ +125°C)
  • 85°C/85% RH for 1,000 hours with 100V bias
  • 20G random vibration per MIL-STD-810H
  • Helium leak rate <5×10⁻⁸ atm*cc/sec

Results: 0 field failures in 120,000+ F4B oscillator boards since 2021

Oscillator Stability Certification

Every F4B board includes comprehensive documentation:

  • Phase Noise Report: -145dBc/Hz @ 10kHz offset (10GHz carrier)
  • TDR Impedance Map: ±1.5% tolerance across panel
  • S-parameters: Full 2-port data to 40GHz
  • Material Certs: UL 94V-0, RoHS 3, REACH SVHC
Why China's F4B Specialists Dominate
  • Speed-to-Market: 5-day prototypes with phase noise validation, 15-day volume production
  • Cost Innovation: 30% lower cost vs. U.S. PTFE fabs with 96% panel utilization
  • Technical Partnership: Free oscillator layout optimization and ANSYS HFSS stability simulations
"Our 38GHz backhaul radios achieved carrier-grade stability using F4B PCBs - reducing phase noise by 8dB while cutting oscillator costs by 40%. China's process mastery solved thermal drift issues that plagued our German-made boards."
- CTO, Top-5 Telecom Infrastructure Supplier
