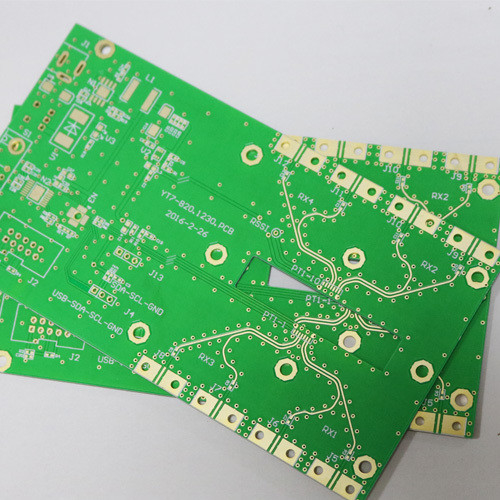

4L High Frequency Rogers PCB with Immersion Gold Surface
High Frequency HF PCB Microwave Oven RF Rogers Circuit Boards Maker Immersion Gold
Product Specifications
| Attribute | Value |
|---|---|
| Product description | RF & Microwave design techniques for PCBs |
| PCB Type | High frequency PCB |
| Min Trace Width | 0.1mm |
| Dielectric Constant | 2.2 |
| Surface Finish | Immersion Gold |
| Layer Count | 4L |
| Material | High speed FR4, 94V0 BT, Rogers... |
| Impedance Value | ± 10% |
Product Details
High Frequency Microwave/RF Rogers PCB printed circuit boards Maker
Quick Specifications
- Layer: 4
- Technology: Rogers+Rogers, Rogers+Fr4, Rogers+Taconic (Mix stack up) fabrication
- Material: RO4350B, RO4003C, RT5880, RO3003, RO3006, RO3010 substrate
- Laminate thickness: 0.127MM-1.524MM
- Production time: 5-15 days (Stock material)
- Copper weight: 0.5OZ-5OZ
- Surface finish: Immersion gold, HASL, Immersion tin/silver etc.
- Origin: Shenzhen, China
- Min line space: 8mil
- Min line width: 8 mil
- Board size: 16*12 cm
Rogers Material Features and Benefits (4000 Series)
- PTFE designed for performance sensitive, high volume applications
- Low dielectric tolerance and low loss
- Excellent electrical performance
- Allows applications with higher operating frequencies
- Ideal for broadband applications
- Stable electrical properties vs. frequency
- Controlled impedance transmission lines
- Repeatable design of filters
- Low thermal coefficient of dielectric constant
- Excellent dimensional stability, Low Z-axis expansion
- Reliable plated through holes
- Low in-plane expansion coefficient
- Remains stable over entire range of circuit processing temperatures
- Volume manufacturing process
Typical Applications: Cellular Base Station Antennas and Power Amplifiers, RF Identification Tags, Automotive Radar and Sensors, LNB's for Direct Broadcast.
Rogers Material Features and Benefits (6000 Series)
- High dielectric constant for circuit size reduction
- Low loss - ideal for operating at X-band or below
- Low Z-axis expansion for RT/duroid 6010LM
- Provides reliable plated through holes in multilayer boards
- Low moisture absorption for RT/duroid 6010LM
- Reduces effects of moisture on electrical loss
- Tight thickness control for repeatable circuit performance
Typical Applications: Patch Antennas, Satellite Communications Systems, Power Amplifiers, Aircraft Collision Avoidance Systems, Ground Radar Warning Systems.
Rogers Substrate Features (Rogers 5000 Series)
- Lowest electrical loss for reinforced PTFE material
- Low moisture absorption
- Isotropic
- Uniform electrical properties over frequency
- Excellent chemical resistance
Typical Applications: Commercial Airline Broadband Antennas, Microstrip and Stripline Circuits, Millimeter Wave Applications, Military Radar Systems, Missile Guidance Systems, Point to Point Digital Radio Antennas.
Rogers substrate in stock (Oct1-31). For other Rogers models, please inquire for delivery time.
Available Rogers Materials
| Brand | Model | Thickness (mm) |
|---|---|---|
| Rogers | RO4003 | 0.254, 0.508, 0.813, 1.524 |
| Rogers | RO4350 | 0.168, 0.254, 0.508, 0.762, 1.524 |
| Rogers | RT5880 | 0.254, 0.508, 0.762 |
| Rogers | RO3003 | 0.127, 0.508, 0.762, 1.524 |
| Rogers | RO3010 | 0.635 |
| Rogers | RO3006 | 0.254 |
| Rogers | RO3206 | 0.635MM |
| Rogers | R03035 | 0.508MM |
| Rogers | RT6010 | 0.635MM, 1.27MM |
