10 Layer Rogers FR4 HF PCB Board for Power Amplifier ENIG Finish

10 Layer Rogers FR4 HF PCB Board for Power Amplifier ENIG Finish

Ürünler - HF PCB
  • Vurgulamak

    FR4 HF PCB

    ,

    ENIG HF PCB

    ,

    Multilayer rogers pcb board

  • Layer
    10
  • Material
    Rogers Fr4 Mix
  • Stackup
    Power Amplifier pcb hf pcb
  • Product description
    hdi pcb manufacturer,single sided pcb board,single sided pcb,1 layer pcb,one sided pcb,single sided pcb design,single sided pcb manufacturing process
  • Board Thk
    1.6mm
  • Supplier Type
    Factory PCB / PCBA Manufacturer
  • Panel
    2*1
  • Min Via
    0.1mm laser drill, 0.2mm mechanic drill
  • Place of Origin
    Shenzhen,China
  • Marka adı
    ONESEINE
  • Sertifika
    ISO9001,ISO14001
  • Model Number
    ONE-102
  • Minimum Order Quantity
    1pcs
  • Fiyat
    USD0.1-1000
  • Packaging Details
    Vacuun bag
  • Delivery Time
    5-8 working days
  • Payment Terms
    T/T,Western Union
  • Supply Ability
    1000000000pcs/mon

10 Layer Rogers FR4 HF PCB Board for Power Amplifier ENIG Finish

Fiyat Al Şimdi başvurun
FR4 Rogers Stackup Multilayer HF PCB Board - 10 Layer ENIG Surface Finishing
Product Specifications
Attribute Value
Layer 10
Material Rogers Fr4 Mix
Stackup Power Amplifier PCB, HF PCB
Board Thickness 1.6mm
Supplier Type Factory PCB/PCBA Manufacturer
Panel 2*1
Min Via 0.1mm laser drill, 0.2mm mechanic drill
Product Overview

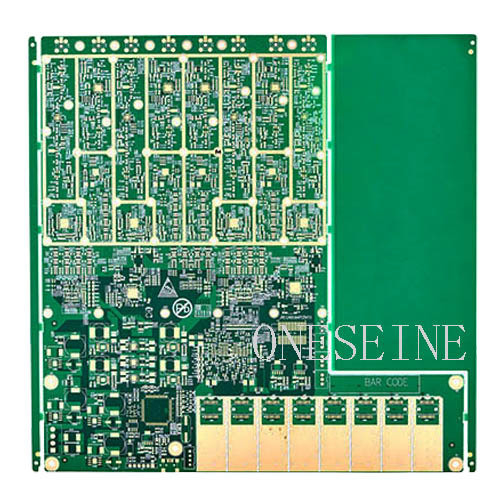

10 Layer Multilayer PCB with Rogers Fr4 Mix Stackup, specially designed for Power Amplifier applications. This high-frequency PCB features ENIG surface finishing for superior performance in demanding electronic applications.

Technical Specifications
  • Place of Origin: Guangdong, China
  • Base Material: FR4 & Rogers
  • Copper Thickness: 0.5-6OZ
  • Board Thickness: 0.2-7.0mm
  • Min. Hole Size: 0.15mm
  • Min. Line Width: 0.075mm/0.1mm (3mil/4mil)
  • Min. Line Spacing: 3 Mil (0.075 mm)
  • Surface Finishing: ENIG, HASL, OSP
  • Soldermask Colors: Green, yellow, black, blue, red, white, matte green
  • Layer Options: 1-40 layers (≥30 layers needs review)
  • Certifications: UL, ROHS, ISO9001
Production Lead Times
Layer Count Sample Lead Time (workdays) Batch Lead Time (workdays)
1-2L 2 6
4L 5 8
6L 5 9
8L 6 10
10L 8 10
12L 8 12
14L 10 15
16L 10 18
18-40L At least 18 workdays (sample), at least 24 workdays (batch)

Note: For HDI, Blind/Buried Hole PCBs: Add 3 workdays to regular lead time.

Quotation Process

For quick quotation, please provide:

  1. Gerber files in .CAD/.Gerber/.PCB/.DXP/.P-CAD format
  2. Complete specifications including:
    • Board material (FR-4/CEM-1/CEM-3/22F/FR-1/others)
    • Material brand (SY/KB/Rogers - optional)
    • Material specifications (High Tg/copper based/aluminum based)
    • Board thickness (0.1-6.0mm)
    • Copper thickness (0.05Oz-8Oz)
    • Surface treatment (OSP/ENIG/HASL/Lead Free HASL/Immersion Tin)
    • Soldermask and silkscreen colors
    • Board size and quantity
Available High Frequency PCB Materials
Brand Model Thickness (mm) DK(ER)
Rogers RO4003C 0.203,0.305,0.406,0.508,0.813,1.524 3.38 ± 0.05
RO4350B 0.101,0.168,0.254,0.338,0.422,0.508,0.762,1.524 3.48 ± 0.05
RO4360G2 0.203,0.305,0.406,0.508,0.610,0.813,1.524 6.15 ± 0.15
[Additional material specifications omitted for brevity - full table would be included in actual implementation]
