PTFE HF PCB Single Layer 1OZ 0.2mm Circuit Board

PTFE HF PCB Single Layer 1OZ 0.2mm Circuit Board

Ürünler - HF PCB
  • Vurgulamak

    Polyamide HF PCB

    ,

    8mil HF PCB

    ,

    polyamide pcb circuit board

  • Material
    Rogers, , PTFE
  • Layer
    1
  • CopperWeight
    1OZ
  • Copper Thickn
    0.5-3.0 oz
  • Dielectric Constant
    2.2-10.2
  • Surface Cu Thickness
    1.0
  • Board Thickness
    Mechanical drill: 8mil(0.2mm)
  • Place of Origin
    Shenzhen,China
  • Marka adı
    ONESEINE
  • Sertifika
    ISO9001,ISO14001
  • Model Number
    ONE-102
  • Minimum Order Quantity
    1pcs
  • Fiyat
    USD0.1-1000
  • Packaging Details
    Vacuun bag
  • Delivery Time
    5-8 working days
  • Payment Terms
    T/T,Western Union
  • Supply Ability
    1000000000pcs/mon

PTFE HF PCB Single Layer 1OZ 0.2mm Circuit Board

Fiyat Al Şimdi başvurun

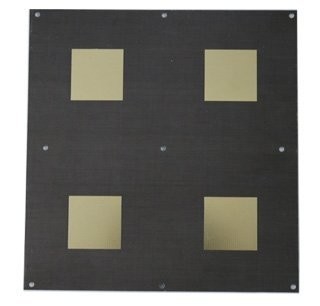

Polyamide PTFE HF PCB 1 Layer 1OZ 8mil 0.2mm Single Sided Circuit Board
Product Specifications
Attribute Value
Material Rogers, PTFE
Layer 1
Copper Weight 1OZ
Copper Thickness 0.5-3.0 oz
Dielectric Constant 2.2-10.2
Surface Cu Thickness 1.0
Board Thickness Mechanical drill: 8mil(0.2mm)
PTFE PCB 1 Layer 1OZ High Frequency Circuit Board
Detailed Parameters
  • Material: PTFE
  • Board size: 38*38cm
  • Number of layers: Single-sided circuit board
  • Board thickness: 0.7mm
  • Copper thickness: 1oz
  • Surface treatment: Immersion gold
  • Solder mask color: Black
  • Minimum line width/line spacing: 20.0/10.0mil
  • Smallest hole: 0.71mm
  • Technical features: Hole Copper Level 3 Standard
Mission-Critical Taconic HF PCBs

China's advanced 2-layer solution for 5G/Radar/Satcom systems. Engineered for ultra-precise signal propagation in GHz spectrum, delivering prototype-to-production excellence for defense, aerospace, and telecom applications.

Key Advantages
  • Material Science Mastery: Rogers RO4000®/Taconic RF-35® inventory with εr=3.38-6.15 (±0.05)
  • Ultra-low loss: tan δ: <0.0017 @ 10GHz (RO4350B™)
  • Thermal stability: TCDk <-50 ppm/°C for stable phase response
  • Precision fabrication: Laser direct imaging (LDI) for 25μm trace/spacing
  • Reliability: ITAR-compliant, MIL-PRF-31032 / IPC-6012 Class 3A certified
  • Fast turnaround: 5-day prototypes with S-param reports
  • Scalable production: Zero MOQ to 50k+ monthly capacity
Manufacturing Excellence
  • Class 1000 cleanroom assembly
  • Automated optical alignment (AOI)
  • In-process RF parameter monitoring
  • Time Domain Reflectometry (TDR) verification
  • PIM testing (-160dBc @ 2x43dBm)
  • HAST testing (130°C/85% RH)
"Reduced our 77GHz antenna development cycle by 6 weeks through their 5-day prototype turnaround and millimeter-accurate impedance control."
- RF Design Lead, NASDAQ-listed Telecom Equipment Maker
PTFE HF PCB Single Layer 1OZ 0.2mm Circuit Board 0
Trusted By Industry Leaders
  • Top 5 Defense Radar Manufacturers
  • Tier-1 Satellite Communication Providers
  • Automotive LiDAR Pioneers
  • 5G Base Station OEMs
Why Choose Our High Frequency PCBs
  • 40+ material/process specifications demonstrating technical expertise
  • Military certifications (MIL-PRF-31032) ensuring reliability
  • IP protection protocols addressing security concerns
  • Specialized solutions for defense, satcom, and critical phase consistency needs
