Arlon High Frequency PCB for Power Divider Coupler Combiner
30mil CEM-1 Arlon HF PCB Multilayers For Consumer Electronic
Product Specifications
Product Attributes
Power divider PCB, Coupler PCB, Combiner PCB, Arlon PCB, High Frequency, For Power Divider / Coupler / Combiner
Min Via
0.1mm laser drill, 0.2mm mechanic drill
Layer
1-40 Layer
Application
Industry/Medical/Consumer electronic
Materials
FR-4, CEM-1/3, HF material, Rogers
RoHS Compliant
Yes
PCB Standard
IPC-A-610 D/IPC-III Standard

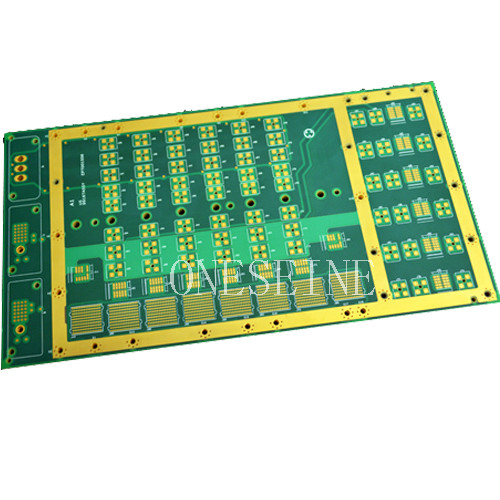

High Frequency Arlon PCB For Power Divider / Coupler / Combiner
Quick detail:
- Material: ArlonAD255, other rogers/Taconic/nelco material optional
- Layer: 2
- Thickness: 30mil
- DK: 2.55 DF: 0.0018
- Size: 8*6cm
- Copper weight: 2oz
- Surface finish: Immersion gold
- All hole PTH
Available Arlon Materials
| Brand | Model | Thickness (mm) | DK(ER) | DF |
|---|---|---|---|---|
| ARLON | AD255 | 0.762,1.5 | 2.55 | 0.0018 |
| AD300C | 0.762.1.524 | 2.97 | 0.002 | |
| TC350 | 0.254,0.762 | 3.5 | 0.002 | |
| DiClad 522 | 0.508,0.787 | 2.4-2.6 | 0.0018 | |
| DiClad 880 | 0.254,0.762 | 2.17 | 0.0009 | |
| TC600 | 0.508,0.889 | 6.15 | 0.002 |
Power Divider PCB
A power divider is a device that divides input signal energy into two or more equal or unequal output paths, or combines multiple input signals into one output. Output ports maintain isolation between them. Common configurations include 1-to-2 and 1-to-3 dividers.
Key technical parameters include power loss (insertion, distribution, and reflection loss), voltage standing wave ratio, port isolation, amplitude/phase balance, power capacity, and bandwidth.
Power divider PCBs can utilize Rogers, Taconic, Arlon or Isola high frequency materials. The dielectric constant (DK), dissipation factor (DF), and thickness are critical specifications for material selection.
Coupler PCB
Microwave systems often require power distribution components called couplers, including directional couplers, power dividers, and branch devices. The PCB forms the most critical component of these systems.
Coupler PCBs demand advanced manufacturing expertise and specialized materials. With over 7 years of experience in coupler PCB production, we provide rapid quotations - typically within 1 hour for standard materials.
