Nelco NY9220 High Frequency PCB Green Solder Mask

Nelco NY9220 High Frequency PCB Green Solder Mask

Ürünler - HF PCB
  • Vurgulamak

    Nelco green mask pcb

    ,

    ODM green mask pcb

    ,

    ODM nelco pcb

  • material
    Nelco
  • material_code
    NY9220
  • pcb_type
    High frequency
  • product_type
    PCB
  • description
    Nelco Material PCB HF Substrate Circuit Boards
  • Solder Mask
    green
  • Product Range
    According to customer requirements
  • Application
    Telecommunications, Aerospace, Medical Equipment, etc.
  • Place of Origin
    Shenzhen,China
  • Marka adı
    ONESEINE
  • Sertifika
    ISO9001,ISO14001
  • Model Number
    ONE-102
  • Minimum Order Quantity
    1pcs
  • Fiyat
    USD0.1-1000
  • Packaging Details
    Vacuun bag
  • Delivery Time
    5-8 working days
  • Payment Terms
    T/T,Western Union
  • Supply Ability
    1000000000pcs/mon

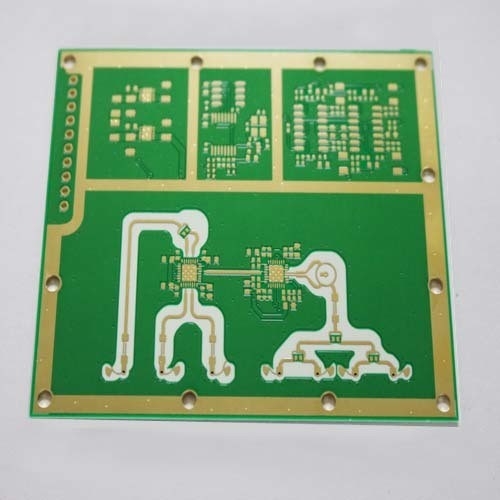

Nelco NY9220 High Frequency PCB Green Solder Mask

Fiyat Al Şimdi başvurun
Nelco Green Mask PCB High Frequency HF Substrate Circuit Board ODM
Product Specifications
Material Nelco NY9220
PCB Type High frequency
Solder Mask Green
Product Range Customized to customer requirements
Applications Telecommunications, Aerospace, Medical Equipment
Detailed PCB Specifications
Material Nelco NY9220
Board Thickness 0.8mm
Layers 2
Surface Finish Immersion gold
Copper Thickness 1OZ
Line Space/Width 0.1mm
Nelco RF and Microwave Materials
Complete spectrum of reliable, high-value substrates for commercial and military critical microwave components, antennas and subassemblies.
  • NY9000 series - PTFE/woven-glass composite (Low glass to PTFE ratio)
  • NX9000 series - PTFE/woven-glass composite (High glass to PTFE ratio)
  • NH9000 series - PTFE/woven-glass/ceramic composite (Medium glass to PTFE ratio)
  • N4350-13 RF - controlled Dk/Df modified epoxy
  • N4380-13 RF - controlled Dk/Df modified epoxy
  • N9000-13 RF - PTFE and epoxy composite
General Parameters
Layers 12-26
Material Types FR-4, CEM-1, CEM-3, High TG, FR4 Halogen Free, Rogers, Nelco
Board Thickness 0.21mm to 7.0mm
Copper Thickness 0.5 OZ to 6 OZ
Max Board Size 580mm × 1100mm
Min. Drilled Hole Size 0.2mm (8 mil)
Min. Line Width/Spacing 4mil (0.1mm)
Surface Finishing Options HASL / HASL lead free, HAL, Chemical tin, Immersion Silver/Gold, OSP, Gold plating
Solder Mask Colors Green/Yellow/Black/White/Red/Blue
Certifications UL, ISO 9001, ISO 14001
Nelco NY9220 High Frequency PCB Green Solder Mask 0
