3OZ HF Isola FR4 Multilayer PCB for Radar Systems ENIG

3OZ HF Isola FR4 Multilayer PCB for Radar Systems ENIG

Ürünler - HF PCB
  • Vurgulamak

    3OZ isola fr4

    ,

    isola fr4 PCB

    ,

    Isola multilayer circuit board

  • product_description
    Isola pcb Multilayer pcb High Frequency PCB ENIG
  • material
    Isola pcb
  • Application
    Telecommunications, Aerospace, Medical Equipment, Radar Systems
  • Dielectric Constant
    2.2 - 10.2
  • Silkscreen Color
    White or on your request.
  • Surface Treatment
    ENIG + gold finger (Au 30U
  • Minimum Width
    0.1mm/ 4mil
  • Copper Thicknes
    1oz, 1/2OZ 1OZ 2OZ 3OZ, 0.5-3.0 oz, 1 Oz
  • Place of Origin
    Shenzhen,China
  • Marka adı
    ONESEINE
  • Sertifika
    ISO9001,ISO14001
  • Model Number
    ONE-102
  • Minimum Order Quantity
    1pcs
  • Fiyat
    USD0.1-1000
  • Packaging Details
    Vacuun bag
  • Delivery Time
    5-8 working days
  • Payment Terms
    T/T,Western Union
  • Supply Ability
    1000000000pcs/mon

3OZ HF Isola FR4 Multilayer PCB for Radar Systems ENIG

Fiyat Al Şimdi başvurun

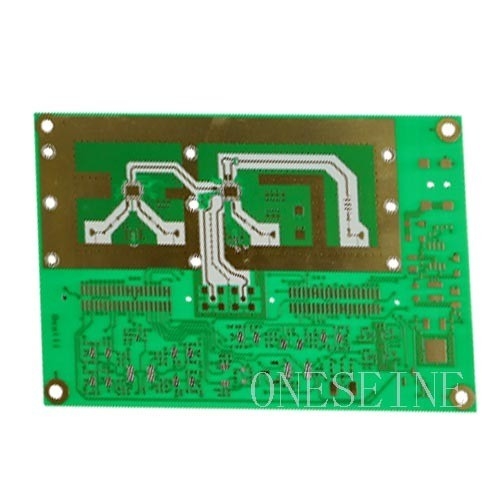

3OZ HF Isola FR4 Multilayer Circuit Board PCB Laminates For Radar Systems
Product Overview
High Frequency Isola PCB multilayer boards with ENIG surface treatment, designed for demanding applications in telecommunications, aerospace, medical equipment, and radar systems.
Key Specifications
Attribute Value
Material Isola PCB
Dielectric Constant 2.2 - 10.2
Silkscreen Color White or custom
Surface Treatment ENIG + gold finger (Au 30U)
Minimum Width 0.1mm/4mil
Copper Thickness 0.5-3.0 oz (1oz standard)
Detailed Specifications
Material: Isola laminate
Surface finish: Immersion gold, ENIG
Layers: 6 layer 1.2mm thickness
Solder mask: Green with white silkscreen
Line space/width: 10mil
Certification: ISO9001/SGS/UL
Quick Details
Model: ONE-102
Size: 16*10cm
Copper THK: 35UM
Color: Green
Popular Isola Models
Isola FR402, 370TURBO, FR408HR, IS400, TerraGreen, FR406, 410, 370HR
Applications
  • Automotive systems
  • Backplanes
  • RF/Microwave equipment
  • High end computing
  • Signal integrity applications
  • Medical devices
  • Military systems
  • Mobile devices/Wireless handsets
  • Railway systems
  • Servers and network switches/routers
  • Thermal management systems
  • Wireless infrastructure
Technical Parameters
Item Specification
Layers 6 layers
Max working panel area 457 x 610 mm
Min board thickness 4 layer: 0.40mm
6 layer: 0.80mm
8 layer: 1.00mm
10 layer: 1.20mm
Min trace width 0.10mm
Min spacing 0.10mm
Min hole diameter 0.20mm
Min Copper thickness in hole 0.020mm
PTH size tolerance ±0.05mm
NPTH size tolerance ±0.025mm
Hole position tolerance ±0.05mm
Dimension tolerance ±0.1mm
Min solder mask dam 0.08mm
Insulation resistance 1E+12Ω (normal condition)
Max Board thickness/Hole size Rate 10:1
Thermal shock endurance 288°C 3 times in 10sec
Max Board twist and wrap ≤0.7%
High Voltage endurance 1.3KV/mm
Copper foil peel off endurance 1.4N/mm
Hardness of resist ink ≥6H
Flame resistance 94V-0
Material model Isola 370HR
Product Advantages
  • Stock available for scarce Isola 370HR material
  • Short material lead time reduces production delays
  • Cost-effective solution for high-frequency applications
Ordering Information
Place of Origin China
Brand Name ONESEINE
Certification CE, ROHS, FCC, ISO9001
Minimum Order Quantity 1pcs
Price Negotiable
Packaging Details Inner: vacuum packed bubble bag
Outer: carton box
Delivery Time 5-10 days
Payment Terms T/T, Western Union, PayPal, L/C
Supply Ability 1,000,000PCS/week
