enig rohs pcb Board
,RF enig rohs pcb
,rogers ro3003 PCB
-
ProductHF PCB
-
Layer2 Layer
-
MaterialRogers 3003
-
FinishImmersion gold (ENIG)
-
Place of OriginShenzhen,China
-
Marka adıONESEINE
-
SertifikaISO9001,ISO14001
-
Model NumberONE-102
-
Minimum Order Quantity1pcs
-
FiyatUSD0.1-1000
-
Packaging DetailsVacuun bag
-
Delivery Time5-8 working days
-
Payment TermsT/T,Western Union
-
Supply Ability1000000000pcs/mon

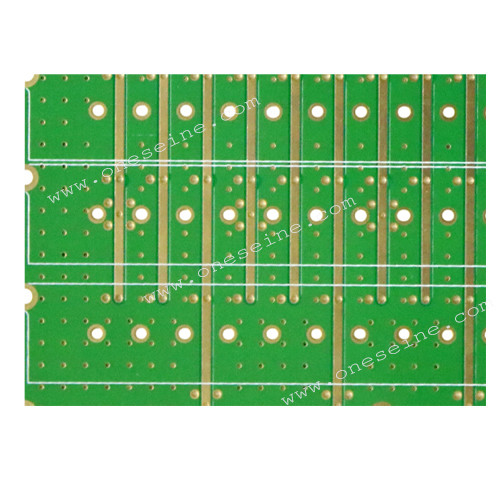

Rogers 3003 2-Layer HF PCB with ENIG Finish for Microwave Applications
0.635MM RF ENIG Rohs PCB Circuit Board Rogers Ro3003 For Microwave
Product Specifications
| Attribute | Value |
|---|---|
| Product | HF PCB |
| Layer | 2 Layer |
| Material | Rogers 3003 |
| Finish | Immersion gold (ENIG) |
Detailed Parameters
- Material: Rogers 3003 0.635MM
- DK: 3
- Layer: 2
- Surface finish: Immersion gold
- Application: Microwave / RF field
- Board thickness: 0.8MM
- Min line width and space: 8mil
- Min hole: 0.3MM
High Frequency PCB Overview
Rogers 3003 material circuit boards are specifically designed for high frequency applications in the microwave and RF fields. These PCBs offer excellent electrical performance with stable dielectric constant and low loss characteristics.
PCB Manufacturing Importance
Understanding the PCB fabrication process is crucial for designers to create manufacturable designs with optimal cost and quality. While manufacturers follow specifications and IPC standards, design choices significantly impact manufacturability, production yield, and final performance.
High Frequency PCB Characteristics
- Frequency Range: MHz to GHz/THz for wireless communication, radar, and satellite systems
- Signal Integrity: Minimized loss and dispersion through specialized materials and routing
- Stackup Design: Optimized layer configuration for impedance control and shielding
- RF Connectors: Specialized components for consistent impedance and minimal reflections
- EMC Compliance: Proper grounding and shielding to prevent interference
- Advanced Simulation: Pre-fabrication analysis for optimal high-frequency performance
- Precision Fabrication: Tight tolerances and specialized processes
- Rigorous Testing: Comprehensive validation including impedance and signal integrity tests
Available High Frequency PCB Materials
| Brand | Model | Thickness(mm) | DK(ER) |
|---|---|---|---|
| Rogers | RO4003C | 0.203,0.305,0.406,0.508,0.813,1.524 | 3.38 ± 0.05 |
| Rogers | RO4350B | 0.101,0.168,0.254,0.338,0.422,0.508,0.762,1.524 | 3.48 ± 0.05 |
| Rogers | RO3003 | 0.13,0.25,0.50,0.75,1.52 | 3.00 ±0.04 |
| Taconic | TLX-8/TLX-9 | 0.508, 0.762 | 2.45-2.65 |
| Arlon | AD255C06099C | 1.5 | 2.55 |
High-Frequency PCB Summary
High-frequency PCBs are engineered for RF and microwave applications, featuring specialized materials with low dielectric constant and loss. Key design considerations include impedance control, signal integrity, transmission line optimization, and effective shielding. These PCBs are essential for wireless communications, aerospace, radar systems, and high-speed data transmission.
