4 Layer Rogers Microwave RF PCB 0.14mm-3.0mm Thickness

4 Layer Rogers Microwave RF PCB 0.14mm-3.0mm Thickness

Ürünler - HF PCB
  • Vurgulamak

    EMC microwave printed circuit boards

    ,

    5oz microwave printed circuit boards

    ,

    0.14mm rf microwave pcb

  • product_attributes
    microwave pcb,rf pcb,2 Layer PCB,HF pcb
  • Mpedance Value
    10%
  • Layer
    4 Layer
  • Base Material
    Rogers
  • Board Thickness
    0.14mm~3.0mm
  • Copper Thicknes
    0.5 0Z in all layer
  • Dielectric Constant
    3.5 - 10.2
  • Copper Weight
    Inner 1/2 oz-4oz;Outer 1oz-5oz
  • Place of Origin
    Shenzhen,China
  • Marka adı
    ONESEINE
  • Sertifika
    ISO9001,ISO14001
  • Model Number
    ONE-102
  • Minimum Order Quantity
    1pcs
  • Fiyat
    USD0.1-1000
  • Packaging Details
    Vacuun bag
  • Delivery Time
    5-8 working days
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    1000000000pcs/mon

4 Layer Rogers Microwave RF PCB 0.14mm-3.0mm Thickness

Fiyat Al Şimdi başvurun

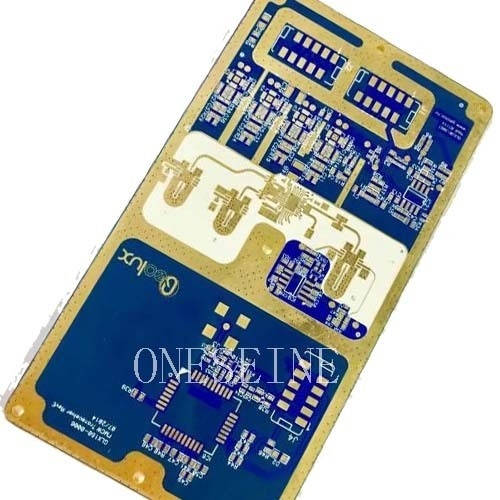

5oz EMC RF Microwave Printed Circuit Boards PCB 0.14mm~3.0mm Thickness
Product Specifications
Product Attributes Microwave PCB, RF PCB, 2 Layer PCB, HF PCB
Impedance Value 10%
Layer 4 Layer
Base Material Rogers
Board Thickness 0.14mm~3.0mm
Copper Thickness 0.5 OZ in all layer
Dielectric Constant 3.5 - 10.2
Copper Weight Inner 1/2 oz-4oz; Outer 1oz-5oz
Reliable Supplier Microwave Circuit Board RF High Frequency PCB
Microwave PCB Information
Base Material Rogers 4350
Board Thickness 0.8mm
Layer 2
Board Size 9*12cm
Surface Finish Immersion Gold
Line Space 6mil
Copper Thickness 1OZ
Line Width 6mil
Microwave Definition

Microwaves are electromagnetic spectrum allocations by definition referring to the wavelength range from 1m to 0.1mm electromagnetic waves, with corresponding frequencies from 0.3GHz to 3000GHz. This spectrum includes decimeter (0.3GHz-3GHz), centimeter (3GHz-30GHz), millimeter (30GHz-300GHz), and sub-millimeter (300GHz-3000GHz) wave bands.

Microwave PCBs must use high frequency printed circuit boards (Rogers/Taconic/Arlon/Isola etc) for applications above 1GHz.

Microwave PCB Materials
  • Rogers4003C: Thickness (0.254, 0.508, 0.813, 1.524) DK 3.38
  • Rogers4350B: Thickness (0.254, 0.508, 0.762, 1.524) DK 3.5
  • Rogers5880: Thickness (0.254, 0.508, 0.762) DK 2.2
  • Rogers3003: Thickness (0.127, 0.508, 0.762, 1.524) DK 3
  • Rogers3010: Thickness (0.635) DK 10.2
  • Rogers3206: Thickness (0.635) DK 10.2
  • Rogers3035: Thickness (0.508) DK 3.5
  • Rogers6010: Thickness (0.635, 1.27) DK 10.2
High Frequency PCB Range

High-frequency PCBs operate from MHz to GHz and THz ranges, used in wireless communication systems, radar, satellite communication, and high-speed data transmission.

Key Features of High Frequency PCBs
  • Minimized signal loss and dispersion through low-loss dielectric materials
  • Controlled impedance routing for consistent performance
  • Optimized PCB stackup configuration for signal integrity
  • Specialized RF connectors for proper signal transmission
  • EMC compliance through proper grounding and shielding
  • Advanced simulation and analysis during design phase
  • Precision fabrication with tight tolerances
  • Rigorous testing including impedance and signal integrity analysis
