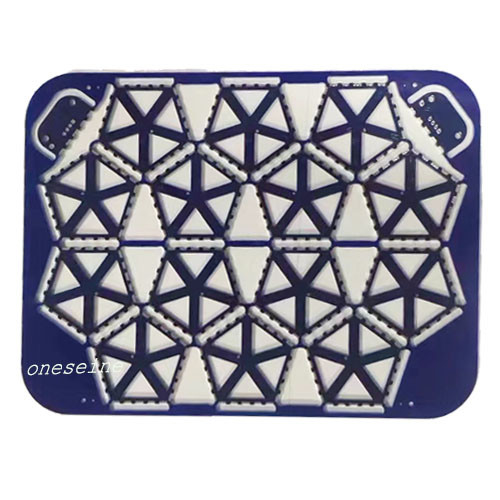

FR4 94V0 Dual Sided PCB Board 2 Layer Blue Soldermask
FR4 94v 0 Prototype Dual Sided PCB Board Fabrication HASL Lead Free
Product Specifications
| Attribute | Value |
|---|---|
| Soldermask | Blue |
| Legend | White |
| Materials | Rogers |
| Max. Panel Size | 600mm x 500mm |
| Cooper | 1/1oz |
| Layer | 2 |
| Enig Thickness | 2U'' |
| Mini Line Width | 0.075mm |
PCB Details
- Number of layers: 2
- Material: FR-4
- Plate thickness: 1.6mm
- Surface treatment: HASL Lead free
- Minimum aperture: 0.3mm
- Outer line width/line spacing: 6/6mil
- Inner line width/line spacing: 6/6mil
- Features: Double sided tin sprayed circuit board
Common Applications for Special Shape FR4 PCBs
Special shape FR4 PCBs are widely used across various industries where space optimization and custom form factors are required:
Wearable Electronics
- Smartwatches
- Fitness trackers
- Smart jewelry
- Clothing with integrated electronics
Medical Devices
- Blood glucose monitors
- Hearing aids
- Implantable medical devices
- Portable diagnostic equipment
Automotive Electronics
- Dashboard displays
- Steering wheel controls
- Tire pressure monitoring systems
- Embedded sensors
Additional Industries
Special shape FR4 PCBs also serve critical roles in:
- Aerospace and Defense: Avionics, radar systems, satellite payloads
- Robotics and Drones: Flight control boards, sensor integration
- IoT Devices: Smart home controllers, industrial sensors
- Audio/Visual Equipment: Professional mixing consoles, VR headsets
- Renewable Energy: Solar inverters, battery management systems
About Special Shape FR4 PCBs
FR4 is a composite material made of woven fiberglass cloth with an epoxy resin binder, offering excellent mechanical and electrical properties for PCB manufacturing.
Special shape FR4 PCBs feature non-rectangular or custom-shaped outlines to fit unique product designs, with these key characteristics:
- Available in various 2D shapes (circular, oval, hexagonal, custom logos)
- Require specialized manufacturing processes and tooling
- Maintain standard FR4 material properties despite custom shapes
- May have component placement restrictions due to irregular outlines
- Offer design flexibility for space-constrained applications
