Copper Clad transparent circuit board
,0.5oz transparent circuit board
,0.5oz smartphone pcb
-
Cooper0.5/0.5 oz
-
OEM hizmetiEvet
-
StandartIPC-Class2/Sınıf 3
-
Sona ermekCNC/Yuva
-
Katman yok2
-
SüzülmeYeşil
-
Place of OriginShenzhen,China
-
Marka adıONESEINE
-
SertifikaISO9001,ISO14001
-
Model NumberONE-102
-
Minimum Order Quantity1pcs
-
FiyatUSD0.1-1000
-
Packaging DetailsVacuun bag
-
Delivery Time5-8 working days
-
Payment TermsT/T, Western Union
-
Supply Ability1000000000pcs/mon

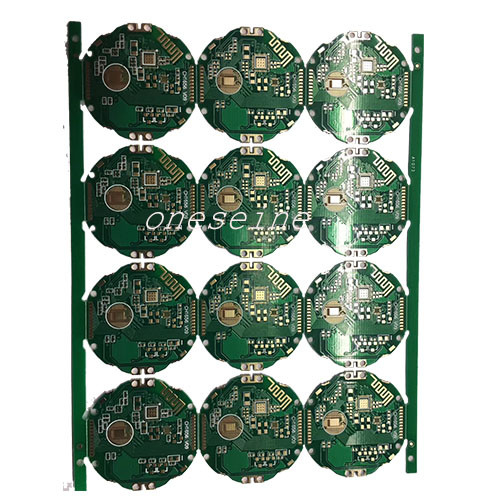

0.5oz Copper Double Sided PCB Green Solder Mask IPC-Class2
0.5oz Copper Clad Transparent Circuit Board Green Smartphone PCB
Product Specifications
| Attribute | Value |
|---|---|
| Copper | 0.5/0.5oz |
| OEM Service | Yes |
| Standard | IPC-Class2/Class 3 |
| Finish | CNC/slot |
| No Of Layers | 2 |
| Soldermask | Green |
2 Layer Double Sided Copper Clad PCB Printed Circuit Boards
PCB quick details:
- Layer: double layer
- Size: 10*10MM
- Surface finish: HASL Lead free
- Thickness: 1.0mm
- Copper weight: 0.5OZ outer
- Color: Green solder mask
Design Considerations for Double-Sided PCBs
Working with double-sided PCBs presents specific design challenges that require careful consideration:
- Component Placement: Optimize placement to minimize interference and ensure proper clearance
- Signal Routing: Plan carefully to avoid crosstalk and maintain signal integrity
- Power and Ground Planes: Utilize reverse side for improved noise reduction
- Thermal Management: Implement heat sinks and thermal vias for effective cooling
- Design for Manufacturability: Follow DFM guidelines for reliable production
- Testing and Debugging: Include accessible test points for troubleshooting
- EMI Control: Implement proper grounding and shielding techniques
Key Advantages of Double-Sided PCBs
- Increased circuit density for compact designs
- Enhanced functionality with through-hole and SMT components
- Improved signal integrity with dedicated ground planes
- Greater design flexibility for complex layouts
- Cost-effective solution compared to multi-layer boards
Common Applications
Double-sided PCBs are widely used in:
- Consumer electronics (smartphones, tablets, TVs)
- Industrial control systems and automation
- Automotive electronics and ECUs
- Medical diagnostic equipment
- Telecommunications infrastructure
- LED lighting systems
