Microwave Dual Sided PCB
,Rogers 4350 Dual Sided PCB
,Rogers 4350 bga circuit board
-
Katman2
-
MalzemeRO4350B Mikrodalga
-
BaşvuruYüksek frekanslı PCB
-
TipDevre kartı
-
Silk ekranlı renkBeyaz, siyah, sarı
-
Tahta kenar kaplamaHAYIR
-
ROHS uyumluEvet
-
Panel1
-
Place of OriginShenzhen,China
-
Marka adıONESEINE
-
SertifikaISO9001,ISO14001
-
Model NumberONE-102
-
Minimum Order Quantity1pcs
-
FiyatUSD0.1-1000
-
Packaging DetailsVacuun bag
-
Delivery Time5-8 working days
-
Payment TermsT/T,Western Union
-
Supply Ability1000000000pcs/mon
2-Layer RO4350B Microwave High Frequency PCB Circuit Board
Rogers 4350 Microwave HF Dual Sided PCB BGA Circuit Board
Product Specifications
| Attribute | Value |
|---|---|
| Layer | 2 |
| Material | ro4350b Microwave |
| Application | High Frequency PCB |
| Type | Circuit Board |
| Silkscreen Color | White, Black, Yellow |
| Board Edge Plating | NO |
| Rohs Compliant | Yes |
| Panel | 1 |

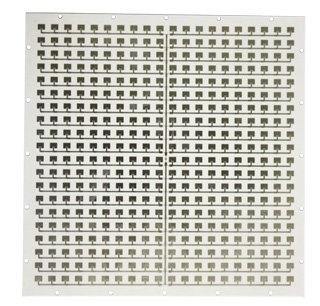

2-Layer RO4350B Microwave High Frequency PCB
RO4350B high frequency board with Rogers 4350B material, designed for microwave high frequency circuit applications.
Technical Details
- Board thickness: 0.508mm
- Surface technology: Immersion gold
- Copper thickness: 1OZ
- Minimum line width/line spacing: 4mil/4mil
RO4350B PCB Applications
Ideal for 5G technology and RF applications requiring high performance with low electrical noise and minimal signal losses:
- Automotive Radar and Sensors
- Microwave equipment
- Cellular Base Station Antennas
- RF Identification (RFID) Tags
- 5G Stations
- Microwave point to point (P2P) links
- LNB's for Direct Broadcast Satellites
High-Frequency Performance Features
- Operates up to 30GHz+ with exceptional signal integrity
- Ultra-low dielectric loss (tan δ ≈ 0.0037 @ 10 GHz)
- Stable εr = 3.48 ± 0.05 across frequencies
- Low Z-axis CTE (32 ppm/°C) for reliable plated through-holes
- Simplified impedance control (50Ω/75Ω)
- Superior thermal management compared to FR4
Key Applications
- 5G NR mmWave Base Stations & Antenna Arrays
- Automotive Radar (24GHz/77GHz) Sensors
- Satellite Communications (SATCOM) LNBs
- IoT/WiFi 6E/7 (5-7GHz) Power Amplifiers
- Aerospace & Defense RF Systems
Accelerate your RF design! Request free stackup recommendations, Dk/Df reports, or instant prototyping quotes. Contact our RF engineers for RO4350B design support.
RO4350B PCB, 2-layer microwave circuit board, high-frequency PCB, RF laminate board, 5G antenna PCB, radar sensor circuit, low-loss PCB, Rogers material PCB, microwave prototype board.
