Vurgulamak
customized flexible pcb board
,Lightweight flexible pcb board
,Lightweight bendable circuit board
-
Lehim maske rengiYeşil, kırmızı, mavi, siyah, beyaz, sarı
-
Pazarlama yöntemiFabrika Doğrudan Satışlar
-
Ürün AçıklamasıEsnek PCB 4 katman
-
Katman sayısı2
-
Yüzey kaplamasıIvır zıvır
-
Ürünesnek PCB
-
Place of OriginShenzhen,China
-
Marka adıONESEINE
-
SertifikaISO9001,ISO14001
-
Model NumberONE-102
-
Minimum Order Quantity1pcs
-
FiyatUSD0.1-1000
-
Packaging DetailsVacuun bag
-
Delivery Time5-8 working days
-
Payment TermsT/T, Western Union
-
Supply Ability1000000000pcs/mon

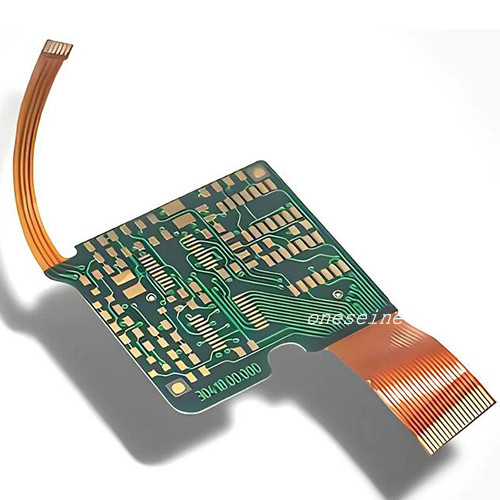

4 Layer Flexible PCB Board ENIG Surface Finish 0.13mm Thickness
Customized Lightweight Flexible PCB Board Bendable Circuit Board For Electronic Manufacturing
Product Specifications
| Attribute | Value |
|---|---|
| Solder Mask Color | Green, Red, Blue, Black, White, Yellow |
| Marketing Method | Factory direct sales |
| Product Description | Flexible PCB 4 Layer |
| Layer Count | 2 |
| Surface Finishing | ENIG |
| Product | Flexible PCB |
Technical Parameters
- Brand: Oneseine
- Number of layers: 4
- Plate thickness: 0.13mm
- Minimum aperture: 0.2
- Minimum line width/line spacing: 0.1mm
- Copper thickness: 1OZ
- Solder resistance: Yellow film
- Surface technology: ENIG
- Sample time: 3-5 days
- Batch time: 15 working days
Flex PCB: The Future-proof Choice for Electronic Manufacturing
Flexible Printed Circuits (FPCBs) are a type of printed circuit board that can bend and flex without breaking. Unlike traditional rigid PCBs, flexible PCBs offer unique advantages that make them suitable for a variety of applications.
Key Features
- Flexibility: Can be bent and twisted to fit compact and intricate spaces
- Lightweight: Lighter than rigid boards, ideal for portable devices
- Space-saving: Conforms to different shapes to optimize device space
- Durability: More resistant to vibrations and shocks for robust applications
Applications
- Consumer Electronics: Smartphones, tablets, and wearables
- Medical Devices: Pacemakers and diagnostic equipment
- Automotive: Dashboards and control systems
- Aerospace: Aircraft systems requiring lightweight durability
Manufacturing Process
- Material Selection: Flexible substrate like polyimide or polyester
- Circuit Design: CAD software for layout and functionality
- Etching: Copper layers etched to form circuit patterns
- Lamination: Multiple layers combined for complex circuits
- Testing: Rigorous quality and reliability testing
