ROHS Flex PCB Board
,HASL Flex PCB Board
,OEM rigid flex pcb
-
Ürün Açıklaması4L Sert-Fleks Basılı Devre Tabloları
-
PCB kalınlığı1.0mm
-
StandartIPC Sınıfı2
-
Lehim maskesiYeşil
-
Tahta tipiSert esnek HDI PCB
-
Bitmiş kalınlık1,6 mm
-
Yüzeyi bitirmeOSP, Immersion Gold, HASL kurşunsuz.
-
Çevre GereksinimleriROHS
-
Place of OriginShenzhen,China
-
Marka adıONESEINE
-
SertifikaISO9001,ISO14001
-
Model NumberONE-102
-
Minimum Order Quantity1pcs
-
FiyatUSD0.1-1000
-
Packaging DetailsVacuun bag
-
Delivery Time5-8 working days
-
Payment TermsT/T, Western Union
-
Supply Ability1000000000pcs/mon

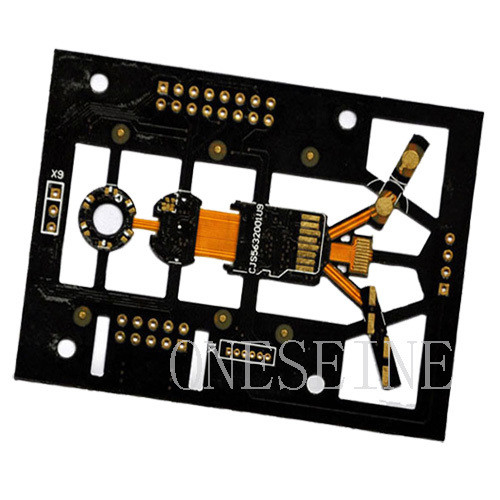

4L Rigid Flex PCB 1.0mm ROHS IPC Class2 OSP HASL
ROHS OSP HASL Kapton Rigid Flex PCB Board IPC Class2 1.0mm OEM
Product Specifications
| Attribute | Value |
|---|---|
| Product description | 4L Rigid-flex Printed Circuit Boards |
| PCB Thickness | 1.0MM |
| Standard | IPC Class2 |
| Solder Mask | Green |
| Board Type | Rigid flex HDI PCB |
| Finished Thickness | 1.6mm |
| Surface Finishing | OSP, Immersion Gold, HASL Lead Free |
| Environmental Requirement | ROHS |
Quick Details
| Layer | 4 | Impedance | Yes |
| Rigid part | Fr4 | Thickness | 0.6mm |
| Flex part | Polyimide | Size | 1.72*7.76CM |
| Copper | 1OZ | Surface finish | ENIG |
| Soldermask | Green | Silkscreen | White |
Manufacturing Capacities
| No. | Item | Description |
|---|---|---|
| 1 | Layer | Flex pcb: 1-6Layers Flex-Rigid pcb: 2-8Layers |
| 2 | Material | CCL, PI, PET, PEN, FR-4 |
| 3 | Final Thickness | Flex board: 0.002" - 0.1" (0.05-2.5mm) Flex-rigid board: 0.0024" - 0.16" (0.06-4.0mm) |
| 4 | Surface Treatment | Lead-free: ENG Gold, OSP, Immersion Silver, Immersion Tin |
| 5 | Min Trace | Inner: 0.5oz: 4/4mil Outer: 1/3oz-0.5oz: 4/4mil |
| 6 | Min Width /Clearance | 1oz: 5/5mil 1oz: 5/5mil 2oz: 5/7mil 2oz: 5/7mil |
| 7 | Min Hole Ring | Inner: 0.5oz: 4mil Outer: 1/3oz-0.5oz: 4mil 1oz: 5mil 1oz: 5mil 2oz: 7mil 2oz: 7mil |
| 8 | Copper Thickness | 1/3oz - 2oz |
| 9 | Max / Min Insulation Thickness | 2mil/0.5mil (50μm/12.7μm) |
| 10 | Min Hole Size and Tolerance | Min Hole: 8mil Tolerance: PTH±3mil, NPTH±2mil |
| 11 | Min Slot | 24mil x 35mil (0.6x0.9mm) |
| 12 | Solder Mask Alignment Tolerance | ±3mil |
| 13 | Silkscreen Alignment Tolerance | ±6mil |
| 14 | Silkscreen Line Width | 5mil |
| 15 | Gold Plating | Nickel: 100μ" - 200μ" Gold: 1μ"-4μ" |
| 16 | Immersion Nickel / Gold | Nickel: 100μ" - 200μ" Gold: 1μ"-5μ" |
| 17 | Immersion Silver | Silver: 6μ" - 12μ" |
| 18 | OSP | Film: 8μ" - 20μ" |
| 19 | Test Voltage | Testing Fixture: 50-300V |
| 20 | Profile Tolerance of Punch | Accurate mould: ±2mil Ordinary mould: ±4mil Knife mould: ±8mil Hand-Cut: ±15mil |
Common Applications
Rigid-flex PCBs are widely used in various electronic devices including:
- Smartphones: Enabling compact size and flexible display connections
- Tablets and Laptops: Supporting thin profiles and folding mechanisms
- Wearable Devices: Conforming to device shapes in smartwatches and medical devices
- Automotive Electronics: Withstanding vibrations in ADAS and infotainment systems
- Aerospace and Defense: Performing in extreme conditions for avionics and satellites
- Medical Devices: Meeting compact size requirements in pacemakers and monitoring equipment
- Industrial Equipment: Providing reliable connections in control systems and robotics
Rigid-Flex PCB Overview
A rigid-flex PCB combines rigid and flexible materials (typically FR4 and polyimide) to create circuit boards that offer structural support while allowing bending or folding where needed. This hybrid construction provides significant advantages:
- Space Efficiency: Eliminates connectors and cables for compact designs
- Enhanced Reliability: Fewer interconnects reduce failure points and improve vibration resistance
- Superior Signal Integrity: Optimized routing minimizes signal loss
- Design Flexibility: Conforms to complex and irregular shapes for innovative product designs
