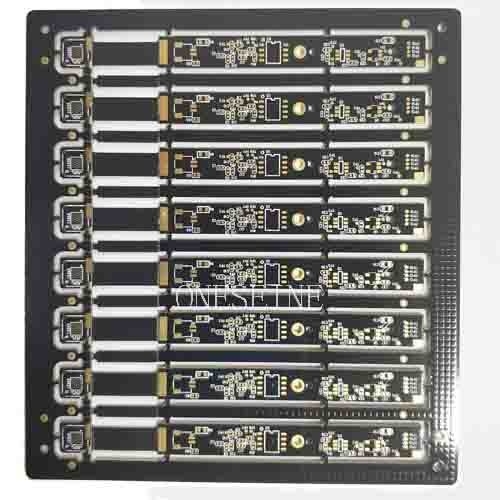

12 Layer Black Rigid Flex PCB with ENIG Finish
White Silkscreen Ceramic Rigid Flex PCBs 12 Layer Printed Circuit Board
Product Specifications
| Attribute | Value |
|---|---|
| Layers | Multilayer |
| Material | Rigid flex |
| Color | Black |
| Surface Finish | Immersion gold (ENIG) |
| PCB Size | Customized |
| Surface Mount Technology | Yes |
12 Layer Rigid Flexible Printed Circuit Board
Brand: ONESEINE
Product category: Soft and hard combination board
Basic parameters: Type: 12-layer soft and hard combination plate (buried blind hole plate)
Specification and size: 95 * 151mm
Copper thickness: 18um
Plate thickness: PCB=1.0mm ± 0.1mm/FPC=0.18mm ± 0.03mm
Hole size: Through hole 0.2mm, blind hole 0.1mm, buried hole 0.1mm
Surface treatment: Immersion gold 2 miles
Soldering resistance: Black ink, white silkscreen
Product category: Soft and hard combination board
Basic parameters: Type: 12-layer soft and hard combination plate (buried blind hole plate)
Specification and size: 95 * 151mm
Copper thickness: 18um
Plate thickness: PCB=1.0mm ± 0.1mm/FPC=0.18mm ± 0.03mm
Hole size: Through hole 0.2mm, blind hole 0.1mm, buried hole 0.1mm
Surface treatment: Immersion gold 2 miles
Soldering resistance: Black ink, white silkscreen
Common Applications of Rigid-Flex PCBs
- Smartphones: Accommodate complex spatial requirements and flexible display connections
- Tablets and Laptops: Enable thinner profiles and folding/rotating mechanisms
- Wearable Devices: Conform to device shapes in smartwatches and medical devices
- Automotive Electronics: Used in ADAS, infotainment systems, and instrument clusters
- Aerospace and Defense: Withstand extreme conditions in avionics and military equipment
- Medical Devices: Meet compact size and durability requirements in implants and monitors
- Industrial Equipment: Provide reliable connections in control systems and robotics
Rigid-Flex PCB Technology Overview
Rigid-flex PCBs combine rigid (typically FR4) and flexible (polyimide) materials, offering structural support while allowing bending or folding where needed. This hybrid construction provides significant advantages for modern electronic devices.
Key Benefits
- Space Efficiency: Eliminates connectors and cables for compact designs
- Enhanced Reliability: Fewer interconnects reduce failure points and improve vibration resistance
- Superior Signal Integrity: Optimized routing minimizes signal loss
- Design Flexibility: Conforms to complex and irregular shapes for innovative product designs
