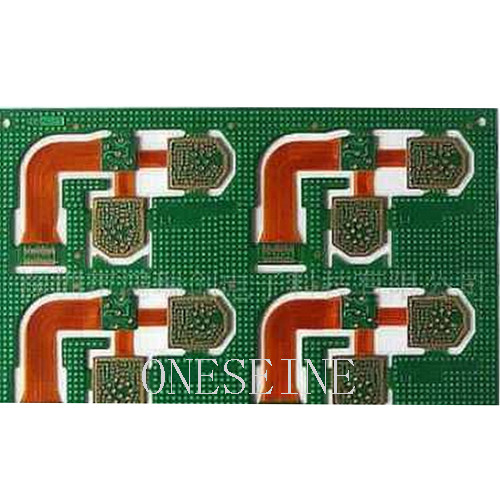

6 Layer Rigid Flex PCB with Immersion Gold Finish

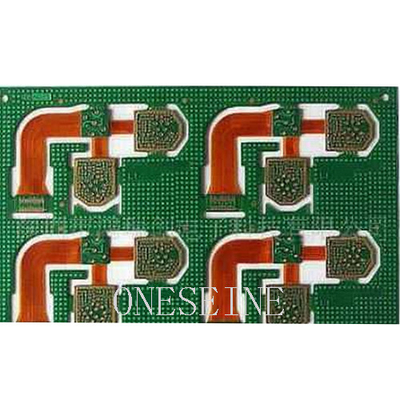

6 Layer Rigid Flex PCB with Immersion Gold Finish

Ürünler - Fleksibel PCB kartı
  • Vurgulamak

    ISO9001 flex circuit pcb

    ,

    HI TG flex circuit pcb

    ,

    HI TG circuit board production

  • Ürün türü
    Sert-Esnek PCB
  • Katman Sayısı
    6
  • Özelleştirme
    Özelleştirilmiş
  • Sona ermek
    Daldırma altın
  • Üretim Yeri
    Shenzhen
  • PCB taşıma hızı
    0-17,5M/dak
  • Kurşun zamanı
    2-15 gün
  • Sipariş Miktarı
    1-500.000
  • Place of Origin
    Shenzhen,China
  • Marka adı
    ONESEINE
  • Sertifika
    ISO9001,ISO14001
  • Model Number
    ONE-102
  • Minimum Order Quantity
    1pcs
  • Fiyat
    USD0.1-1000
  • Packaging Details
    Vacuun bag
  • Delivery Time
    5-8 working days
  • Payment Terms
    T/T, Western Union
  • Supply Ability
    1000000000pcs/mon

6 Layer Rigid Flex PCB with Immersion Gold Finish

  • 6 Layer Rigid Flex PCB with Immersion Gold Finish
Fiyat Al Şimdi başvurun
ISO9001 HI TG Rogers Flex Circuit PCB Board Production For Electronics
Product Specifications
Attribute Value
Product Type Rigid-flex PCB
Layer Count 6
Customization Customized
Finish Immersion Gold
Manufacturing Location Shenzhen
PCB Conveying Speed 0-17.5M/Min
Lead Time 2-15 Days
Order Quantity 1-500,000
Product Overview

Customized 6 Layer Rigid Flex Circuit Design From Shenzhen Manufacturer

Quick Details
  • Number of layers: 6
  • Board thickness: 1.2mm
  • Brand: ONESEINE
  • Sample order: Acceptable
  • Application: Electronics products
  • Surface finish: Immersion gold
  • Item: rigid-flex PCB boards
Our Services

We provide comprehensive electronics manufacturing services including:

  • PCB Production (FR-4, HI-TG, Aluminum, FPC, Rogers, CEM-1)
  • FPC/PCB Copy Service
  • PCB Assembly Service (SMT, BGA, DIP)
  • IC programming with HEX file
  • PCBA Housing assembly service
  • PCBA Functional Testing
  • PCBA Copy Service
  • Electronic Components Purchasing
  • PCB SMT Stencil (Laser cut & Etching)
  • Cable assembly
Why Choose Us?
  • Professional engineering team for design review and production preparation
  • Extensive PCB manufacturing experience ensuring high quality and competitive pricing
  • Comprehensive after-sales support with professional solutions
  • Responsive customer service with constant follow-up
  • Certified production standards (ISO, UL, ROHS)
Process Capabilities
Capability Specification
Layers Single Sided, 2 to 18 Layer
Board material type FR4, CEM-1, CEM-3, ceramic substrate, aluminum based, high-Tg, Rogers
Compound material lamination 4 to 6 layers
Maximum dimension 610 x 1,100mm
Dimension tolerance ±0.13mm
Board thickness coverage 0.2 to 6.00mm
Board thickness tolerance ±10%
DK thickness 0.076 to 6.00mm
Minimum line width 0.10mm
Minimum line space 0.10mm
Outer layer copper thickness 8.75 to 175µm
Inner layer copper thickness 17.5 to 175µm
Drilling hole diameter (mechanical drill) 0.25 to 6.00mm
Finished hole diameter (mechanical drill) 0.20 to 6.00mm
Hole diameter tolerance (mechanical drill) 0.05mm
Hole position tolerance (mechanical drill) 0.075mm
Laser drill hole size 0.10mm
Board thickness and hole diameter ratio 10:1
Solder mask type Green, Yellow, Black, Purple, Blue, White, Red
Minimum solder mask Ø0.10mm
Minimum size of solder mask separation ring 0.05mm
Solder mask oil plug hole diameter 0.25 to 0.60mm
Impedance control tolerance ±10%
Surface finish HASL, ENIG, immersion silver, gold plating, immersion tin, gold finger
Rigid-flex PCB Technology

A rigid-flex PCB combines rigid and flexible materials in its construction, offering the advantages of both technologies. This hybrid solution is ideal for applications with space constraints, complex geometries, and demanding reliability requirements.

The board consists of multiple layers of rigid FR4 materials and flexible polyimide sections. Rigid portions provide structural support for components, while flexible areas allow the board to bend or fold as needed.

Key Benefits
  • Space efficiency: Eliminates connectors and cables for significant space savings
  • Enhanced reliability: Fewer interconnects and solder joints reduce failure points while improving vibration and thermal stress resistance
  • Superior signal integrity: Optimized routing minimizes signal loss and improves performance
  • Design flexibility: Accommodates complex and irregular shapes for innovative product designs
