OEM pcb control board
,Taconic pcb control board
,Taconic bga prototype board
-
Ürün adıÇift taraflı karbon yağı altın pcb
-
MalzemeTaconik
-
Ürün Açıklamasıçıplak baskılı devre tahtası
-
TipOEM PCB, Özelleştirilmiş PCB
-
Yüzey BittiDalga
-
BaşvuruTelekomünikasyon, havacılık, tıbbi ekipman
-
PCB StandardıIPC-A-610 D
-
KaliteIPC (Sınıf II veya III）
-
Place of OriginShenzhen,China
-
Marka adıONESEINE
-
SertifikaISO9001,ISO14001
-
Model NumberONE-102
-
Minimum Order Quantity1pcs
-
FiyatUSD0.1-1000
-
Packaging DetailsVacuun bag
-
Delivery Time5-8 working days
-
Payment TermsT/T,Western Union
-
Supply Ability1000000000pcs/mon

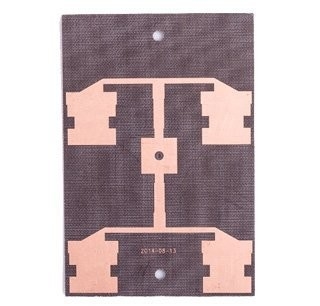

Double Sided Carbon Oil Gold PCB Taconic High Frequency
| Product Name | Double Sided Carbon Oil Gold PCB |
|---|---|
| Material | Taconic |
| Description | Bare printed circuit board |
| Type | OEM PCB, Customized PCB |
| Surface Finish | Immersion Gold |
| Application | Telecommunication, Aerospace, Medical Equipment |
| PCB Standard | IPC-A-610 D |
| Quality | IPC (Class II or III) |
- Material: Taconic TLY-5
- Brand: ONESEINE
- Thickness: 1.6mm
- Finished copper thickness: 1OZ
- Surface treatment: Gold + Carbon Oil
- Minimum line width spacing: 0.15mm, 0.15mm
- Minimum aperture: 0.2mm
- Solder mask: Black
Double-Sided Carbon Oil High-Frequency PCBs represent the cutting edge of innovation for RF communications, medical instrumentation, and high-power industrial systems. These PCBs combine advanced carbon oil technology with multilayer versatility to address critical challenges in signal integrity and thermal management.
Engineered with specialized materials (FR-4, Rogers, halogen-free options), these PCBs minimize signal loss at GHz frequencies, making them ideal for 5G base stations, radar systems, and satellite communications. Features include impedance control with ±5% tolerance and ultra-low dielectric loss for unmatched signal fidelity in EMI-heavy environments.
The carbon oil conductive coating enables precise keypad interfaces and wear-resistant circuits, replacing traditional mechanical switches. This technology supports over 100,000 actuation cycles without degradation - perfect for medical devices and industrial controls.
Achieve 2X circuit density with 0.075mm line width/spacing and micro-vias down to 0.2mm. This allows compact designs for wearable tech and IoT sensors without sacrificing thermal dissipation.
Optional embedded copper coin technology dissipates heat 5X faster than standard FR-4, critical for power amplifiers and LED drivers. Operating stability extends to 150°C+ with high-Tg laminates.
- Rapid Prototyping: 5-6 day turnaround for samples
- Layers & Finishes: 1-64 layers; ENIG, Immersion Silver, or carbon ink surfaces
- Complex Builds: Hybrid rigid-flex designs and mixed-material stacks
- Medical: MRI control boards, portable diagnostics
- Telecom: 5G mmWave antenna substrates
- Green Energy: Solar inverter control boards
- Consumer Tech: High-end audio equipment, touch-sensitive interfaces
- ✓ Certified Excellence: ISO 9001/14001, RoHS compliant
- ✓ One-Stop Solution: From PCB fabrication to full PCBA with component sourcing
- ✓ Global Logistics: Doorstep delivery with anti-ESD vacuum packaging
Transform your high-frequency designs with PCBs that balance performance, density, and thermal control.
Contact Our Engineering Team Download Technical Specs
