2 Layer GSM Antenna PCB High Frequency RT Duroid 5880

2 Layer Ru 94v 0 Circuit Board GSM Turnkey PCB Assembly RT Duroid 5880
Product Specifications
Attribute Value
Product GSM Antenna PCB
Layers 2
Substrate RT Duroid 5880
Frequency High Frequency
Type PCB Antenna
Material FR-4
Application GSM
Product Description

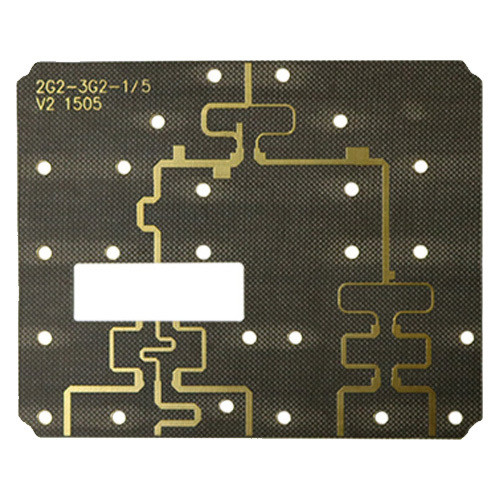

2 Layer GSM Antenna PCB Circuit Board Design with High Frequency RT Duroid 5880 PCB Substrate

PCB Details
  • Product name: 2 Layer Antenna Circuit Board High Frequency RT Duroid 5880 PCB Substrate
  • Brand Name: ONESEINE
  • Base Material: Rogers5880
  • Copper Thickness: 1OZ
  • Board Thickness: 0.8mm
  • Min. Hole Size: 0.2mm
  • Min. Line Width: 4mil
  • Min. Line Spacing: 4mil
  • Surface Finishing: ENIG
  • Certificate: RoSH ISO9001 UL
  • Board Thickness Tolerance: +/-10%
  • Hole tolerance: PTH: +/-3mil NPTH: +/-2mil
  • Min distance pad-pad: 8mil
  • Min distance trace-pad: 8mil
  • Min distance trace-via: 4mil
  • PCB Standard: IPC-A-610 D
  • Shipping: DHL UPS TNT Fedex
  • Inner Package: Vacuum package
High Frequency PCB Features

Designed for optimal performance in high-frequency applications ranging from MHz to GHz and THz ranges, including wireless communication systems, radar, satellite communication, and high-speed data transmission.

Key technical considerations include:

  • Minimized signal loss and dispersion through low-loss dielectric materials
  • Controlled impedance routing for signal integrity
  • Optimized PCB stackup configuration with multiple copper layers
  • Specialized RF connectors for consistent impedance
  • EMC compliance through proper grounding and shielding
  • Advanced simulation and analysis during design phase
  • Precision fabrication with tight tolerances
  • Rigorous testing including impedance and signal integrity analysis
2 Layer GSM Antenna PCB High Frequency RT Duroid 5880 0
