Rogers 4003C Double Sided PCB for Automotive Radar 77GHz

Rogers 4003C Double Sided PCB for Automotive Radar 77GHz

Ürünler - Çift taraflı PCB
  • Vurgulamak

    Rogers 4835 Dual Sided PCB

    ,

    Bga Dual Sided PCB

    ,

    Automotive bga electronic component

  • Marş
    Rogers fr4
  • Efsane
    Beyaz
  • Katman sayısı
    1-20 katman
  • Temel malzeme
    Rogers, Arlon, Nelco, Taconic
  • ROHS uyumlu
    Evet
  • Özellik
    Expedite Hizmetleri
  • Min Via
    0.1mm lazer matkabı, 0.2mm mekanik matkap
  • Bakır kalınlık
    1 oz, 1/2oz 1oz 2oz 3oz, 0.5-3.0 oz, 1 oz
  • Yüzey Bitti
    Dalga
  • Lehim maske rengi
    Yeşil, siyah, mavi, kırmızı, sarı vb.
  • Yüzey kaplaması
    Hasl, Enig, Daldırma Gümüş, OSP
  • PCB Boyutu
    40*30mm
  • PCB bilgileri sağlayın
    Altın 20U
  • Dielektrik sabiti
    2.2 - 10.2
  • Place of Origin
    Shenzhen,China
  • Marka adı
    ONESEINE
  • Sertifika
    ISO9001,ISO14001
  • Model Number
    ONE-102
  • Minimum Order Quantity
    1pcs
  • Fiyat
    USD0.1-1000
  • Packaging Details
    Vacuun bag
  • Delivery Time
    5-8 working days
  • Payment Terms
    T/T,Western Union
  • Supply Ability
    1000000000pcs/mon

Rogers 4003C Double Sided PCB for Automotive Radar 77GHz

Fiyat Al Şimdi başvurun
Rogers 4835 Dual Sided PCB Bga Electronic Component For Automotive Radar
Product Specifications
Attribute Value
Material Rogers FR4
Legend White
Layer Count 1-20 layers
Base Material Rogers, Arlon, Nelco, Taconic
Rohs Compliant Yes
Feature Expedite Services
Min Via 0.1mm laser drill, 0.2mm mechanic drill
Copper Thickness 1oz, 1/2OZ 1OZ 2OZ 3OZ, 0.5-3.0 oz, 1 Oz
Surface Finished Immersion Gold
Solder Mask Colour Green, Black, Blue, Red, Yellow etc.
Surface Finish HASL, ENIG, Immersion Silver, OSP
PCB size 40*30mm
Provide PCB Information Gold 20U
Dielectric Constant 2.2 - 10.2

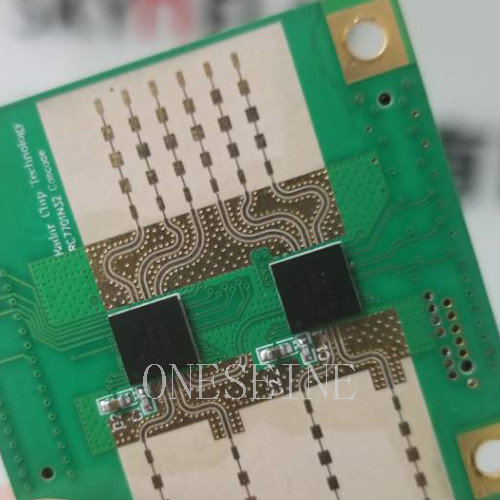

Double Sided Rogers 4003C Automotive Radar PCB Circuit Board With Low z-axis CTE
PCB Parameters
  • Application: Automotive System
  • PCB material: Rogers 4003C 12mil
  • Surface finish: Immersion gold
  • Board size: 9*13CM
  • Solder mask: Green
Typical Applications
  • Automotive radar applications
  • Global positioning satellite antennas
  • Cellular telecommunications systems
  • Patch antenna for wireless communications
  • Direct broadcast satellites
  • RFID Tags
  • Surface mount RF components
  • E-Band point to point microwave links
✓ Rogers PCB multilayer PCB with high frequency improves product quality and extends lifecycle
✓ Immersion gold surface finish enhances conductive performance
✓ Multilayer PCB design improves precision
✓ Low dielectric conductivity for greater precision
Product Description

Engineered for mission-critical automotive radar systems (77GHz+), our double-sided PCB utilizes Rogers 4003C high-frequency laminate to deliver unmatched signal integrity and thermal reliability. This circuit board is purpose-built for ADAS (Advanced Driver Assistance Systems), collision avoidance, and autonomous driving sensors where millimeter-wave precision is non-negotiable.

Critical Features & Benefits
  • Rogers 4003C Core Material: Ultra-low dielectric loss (Df ≈ 0.0027 @ 10GHz) and stable Dk (εr = 3.38) ensure minimal signal distortion at 24GHz, 77GHz & 79GHz radar frequencies.
  • Ultra-Low Z-Axis CTE (17 ppm/°C): Matches copper CTE to prevent via cracking & delamination under extreme automotive thermal cycling (-40°C to +150°C).
  • Double-Sided Design: Cost-effective solution for complex RF routing + integrated control circuitry in compact radar modules.
  • Moisture Resistance: Near-zero water absorption (<0.04%) maintains electrical stability in harsh environments.
  • Automotive-Grade Reliability: AEC-Q200 compliant design principles for vibration/shock resistance and long-term durability.
Ideal Applications
  • 77/79GHz ACC (Adaptive Cruise Control) Radar PCBs
  • Blind Spot Detection (BSD) Sensors
  • Forward Collision Warning (FCW) Systems
  • Autonomous Vehicle Perception Modules
  • High-Resolution SAR (Synthetic Aperture Radar)
Why Choose This Board?
  • Precision Performance: Minimize phase noise and insertion loss in mmWave circuits.
  • Zero Field Failures: Eliminate thermal-mechanical PCB failures with engineered CTE matching.
  • Reduce Integration Risk: Pre-qualified material stackup for automotive radar OEMs & Tier 1 suppliers.
Rogers 4003C Double Sided PCB for Automotive Radar 77GHz 0
Keywords for Search Visibility
Automotive radar PCB Rogers 4003C circuit board 77GHz PCB low CTE PCB double-sided RF board ADAS PCB mmWave circuit board radar sensor PCB thermal-stable PCB Rogers laminate PCB
