OEM rogers ceramic pcb
,6oz Copper rogers ceramic pcb
,6035HTC pcb motherboard
-
Tahta kalınlığı0,2-6,0 mm
-
ÖzelliklerYığınlama, Hesap Makinesi
-
Temel malzemeRogers
-
Kurşun zamanı3-5 gün
-
Bakır kalınlığı0.5OZ-6OZ
-
ModelBir tek.
-
Bakır Ağırlığıİç 1/2 oz-4 oz; Dış 1 oz-5 oz
-
Pano boyutu9*6cm
-
Hat genişliği3 milyon
-
Tahta kenarları kaplamaHAYIR
-
Place of OriginShenzhen,China
-
Marka adıONESEINE
-
SertifikaISO9001,ISO14001
-
Model NumberONE-102
-
Minimum Order Quantity1pcs
-
FiyatUSD0.1-1000
-
Packaging DetailsVacuun bag
-
Delivery Time5-8 working days
-
Payment TermsT/T, Western Union
-
Supply Ability1000000000pcs/mon

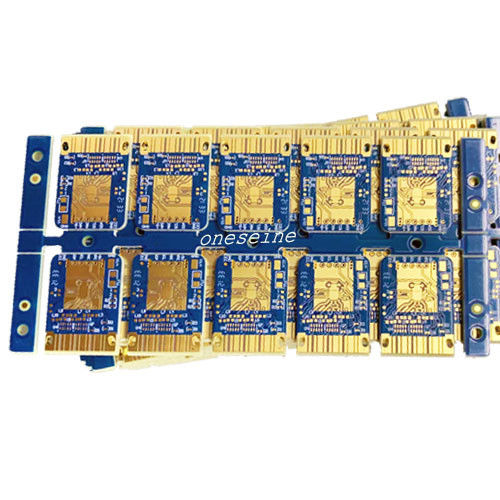

6035HTC Rogers Ceramic PCB Board 0.5oz-6oz Copper 0.2-6.0mm Thickness
OEM Rogers Ceramic PCB Circuit Board 6035HTC Motherboard 0.5oz-6oz Copper
Product Specifications
| Attribute | Value |
|---|---|
| Board Thickness | 0.2-6.0mm |
| Features | Stack Up, Calculator |
| Base Material | Rogers |
| Lead Time | 3-5 days |
| Copper Thickness | 0.5oz-6oz |
| Model | ONESEINE |
| Copper Weight | Inner 1/2 oz-4oz; Outer 1oz-5oz |
| Board Size | 9*6cm |
| Line Width | 3mil |
| Board Edge Plating | NO |
PCB Parameters
Boards size: 12*3CM
Surface finish: ENIG
Boards thickness: 0.7mm
Layer: 2
Solder mask: Blue
Silkscreen: White
Brand: ONESEINE
Key Advantages of Rogers PCBs
- Electrical Performance: PTFE-based and ceramic-filled laminates with low dielectric constant (εr 3.55-3.66) and loss tangent (tan δ 0.0037 at 10 GHz) for low signal loss and high-frequency performance
- Thermal Management: High thermal conductivity (0.5-2.1 W/m-K) and operation up to 250°C for efficient heat dissipation
- Mechanical Reliability: Superior flexural strength, tensile strength, and peel strength for structural integrity
- Design Flexibility: Wide range of materials including PTFE-based, ceramic-filled, and LCP laminates
- Specialty Applications: Ideal for 5G infrastructure, radar, satellite communications, and automotive radar
- Sustainability: Environmentally friendly manufacturing with lead-free, halogen-free, and RoHS-compliant solutions
About Rogers PCBs
Rogers Corporation manufactures high-performance circuit materials for wireless infrastructure, automotive, aerospace, and defense applications. Their product lines include RO4000 Series, RO3000 Series, and RT/duroid Series, optimized for different frequencies and thermal requirements.
Rogers PCBs are known for their low loss tangent, controlled impedance, and thermal management capabilities, making them ideal for high-speed, high-frequency applications in 5G, radar, and satellite communications.
Thermal Properties for High-Power Applications
Thermal Conductivity: 0.5-2.1 W/m-K (significantly higher than standard FR-4)
CTE: Low z-axis coefficient of thermal expansion for reduced warpage
Temperature Range: Continuous operation up to 150-250°C
These properties enable effective heat dissipation and reliable performance in high-power applications with thermal cycling and mechanical stresses.
