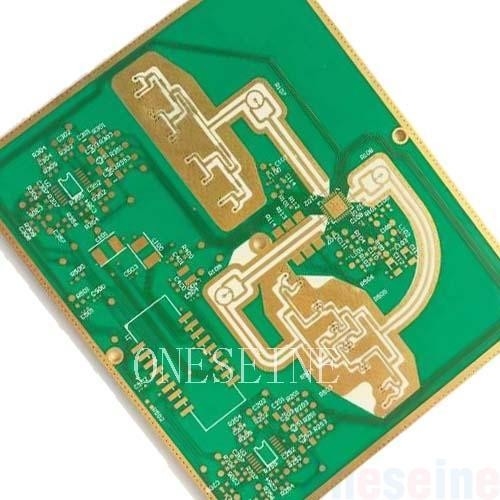

FR4 Multilayer 6006 Rogers PCB Board Maker 1.0mm High Frequency

• Surface finish: Gold plated
• Solder mask: Green
• Silkscreen: White
• Material: Rogers 6006 & FR4 high frequency
• Board size: 12*10CM
• Thickness: 1.0mm

RT/duroid 6006 microwave laminates are ceramic-PTFE composites designed for electronic and microwave circuit applications requiring a high dielectric constant. RT/duroid 6006 laminate has a dielectric constant value of 6.15 while RT/duroid 6010LM laminate has a dielectric constant of 10.2.

These laminates feature ease of fabrication and stability in use, with tight dielectric constant and thickness control, low moisture absorption, and excellent thermal mechanical stability.

Available with ¼ oz. to 2 oz./ft² (8.5 to 70 μm) electrodeposited copper foil cladding on both sides. Rolled copper foil cladding and thick aluminum, brass, or copper plate options are also available.

• Space Saving Circuitry
• Patch Antennas
• Satellite Communications Systems
• Power Amplifiers
• Aircraft Collision Avoidance Systems
• Ground Radar Warning Systems

• High dielectric constant for circuit size reduction
• Low loss - ideal for operating at X-band or below
• Tight εr and thickness control for repeatable circuit performance

Rogers RT/duroid® high-frequency circuit materials are filled PTFE (irregular glass or ceramic) composites for high reliability, aviation and defense applications, offering:

• Low electrical loss
• Low moisture absorption
• Stable dielectric constant (Dk) over wide frequency range
• Low outgassing for space applications

Ceramic filled PTFE composites for commercial microwave/RF applications with stable mechanical properties across dielectric constants (3.0 to 10.2). Common uses include:

• Surface mount RF components
• GPS antennas
• Power amplifiers

Price-optimized laminates compatible with standard FR4 processes, featuring dielectric constants from 2.55-6.15. Typical applications:

• RFID chips
• Power amplifiers
• Automotive radars
• Sensors

Thermoset microwave laminates with excellent electrical/mechanical stability for high-reliability applications, offering:

• Wide range of dielectric constants
• Exceptional mechanical properties
• Low thermal coefficient of Dk
• CTE matched to copper
• RoHS compliant
