1.2mm Rogers PCB Board
,1OZ Rogers PCB Board
,RT5880 pcb electronics
-
thickness1.2mm
-
surface_finishImmersion silver
-
laminateRT5880
-
materialhigh frequency pcb material
-
Electronics Sourceyes
-
Assembly Optionyes
-
Place of OriginShenzhen,China
-
Marka adıONESEINE
-
SertifikaISO9001,ISO14001
-
Model NumberONE-102
-
Minimum Order Quantity1pcs
-
FiyatUSD0.1-1000
-
Packaging DetailsVacuun bag
-
Delivery Time5-8 working days
-
Payment TermsT/T, Western Union
-
Supply Ability1000000000pcs/mon

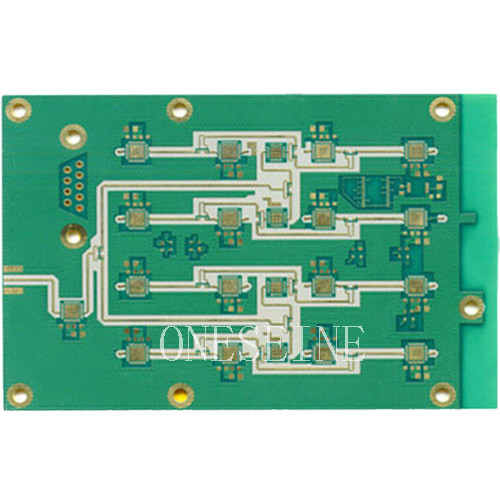

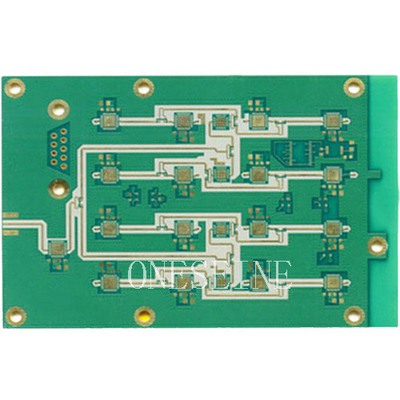

1.2mm RT5880 Rogers PCB Board High Frequency with Immersion Silver
1.2mm 1OZ RT5880 Rogers PCB Board High Frequency For Electronics
Product Specifications
| Attribute | Value |
|---|---|
| Thickness | 1.2mm |
| Surface Finish | Immersion silver |
| Laminate | RT5880 |
| Material | High frequency PCB material |
| Electronics Source | Yes |
| Assembly Option | Yes |
Basic Information
Layers:
2
Surface Finish:
Immersion silver
Thickness:
1.6mm
Copper Weight:
1OZ
Color:
Green solder mask
Product Description
Rogers RT5880 High Frequency Duroid PCB with 1.2mm thickness features the lowest dielectric constant (1.96 at 10 GHz) available in the market, making it ideal for broadband applications at microwave through millimeter-wave frequencies where dispersion and circuit losses must be minimized.
Key Features
- PTFE-based composite with unique filler for low density (1.37 gm/cm³)
- Low coefficient of thermal expansion (CTE) in the Z-axis
- Excellent dielectric constant uniformity across panels
- Low dissipation factor extends usefulness to K-band and above
- Extremely low water absorption for high moisture environments
- Easily machined and resistant to common PCB processing chemicals
Technical Specifications
Dielectric Constant:
2.2±0.02
Dissipation Factor:
0.0004/0.0009
Frequency Range:
8GHz-40GHz
Standard Thickness Options
0.005" (0.127mm), 0.010" (0.254mm), 0.015" (0.381mm), 0.020" (0.508mm), 0.031" (0.787mm), 0.062" (1.575mm), 0.125" (3.175mm)
Standard Panel Sizes
18" × 12" (457 × 305mm), 18" × 24" (457 × 610mm)
Applications
- Commercial airline broadband antennas
- Microstrip and stripline circuits
- Millimeter wave applications
- Military radar systems
- Missile guidance systems
- Point-to-point digital radio antennas
Fabrication Capabilities
- SMOBC, LPI processing
- Up to 30 layers with 4mil Line/Spacing
- Controlled Impedance
- Immersion Gold, Soft Bondable Gold finishes
- Gold tabs, Selective gold, White Tin options
- Blind and Buried Vias
- Scored and Tab Route Panels
