Vurgulamak
5880 rogers board pcb
,OEM rogers board pcb
,OEM rogers ceramic pcb
-
Kalınlık0.787mm
-
Katman2
-
MalzemeRogers 5880
-
BaşvuruTicari Havayolu Geniş Bant Antenleri, Mikroşeritli ve Stripline Devreleri, Millimetre Dalga Uygulama
-
Min. Delik Boyutu0.15 mm
-
Min Hat Alanı3mil
-
Lehim maskesisiyah
-
Yüzey kaplamasıHasl, Enig, OSP, daldırma gümüş, daldırma teneke, daldırma altın
-
Elektronik kaynağıEvet
-
Cu thk35um
-
Bakır kalınlığı1/3oz-6oz
-
Temel malzemeFr4, Rogers
-
Place of OriginShenzhen,China
-
Marka adıONESEINE
-
SertifikaISO9001,ISO14001
-
Model NumberONE-102
-
Minimum Order Quantity1pcs
-
FiyatUSD0.1-1000
-
Packaging DetailsVacuun bag
-
Delivery Time5-8 working days
-
Payment TermsT/T, Western Union
-
Supply Ability1000000000pcs/mon

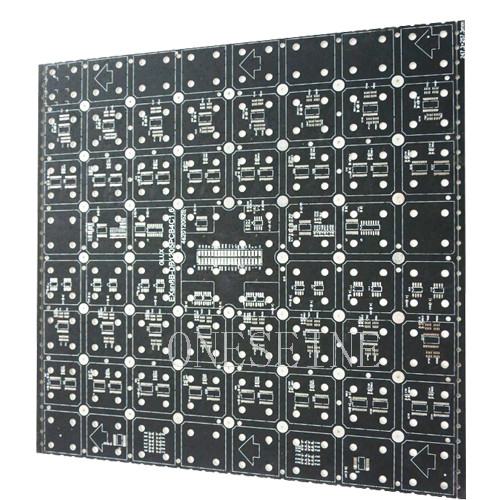

ceramic 5880 Rogers Board PCB 0.787mm 2 Layer Black Solder Mask
OEM 5880 Ceramic Rogers Board PCB Prototype Black Solder
Product Specifications
| Attribute | Value |
|---|---|
| Thickness | 0.787MM |
| Layer | 2 |
| Material | Rogers 5880 |
| Application | Commercial Airline Broadband Antennas, Microstrip and Stripline Circuits, Millimeter Wave Applications, Military Radar Systems, Missile Guidance Systems, Point to Point Digital Radio Antennas |
| Min. Hole Size | 0.15mm |
| Min Line Space | 3mil |
| Solder Mask | Black |
| Surface Finish | HASL, ENIG, OSP, Immersion Silver, Immersion Tin, Immersion Gold |
| Copper Thickness | 1/3oz-6oz |
| Base Material | FR4, Rogers |
Product Overview
2 Layer Rogers 5880 0.787MM Thickness PCB Prototype
Quick details:
- Material: Rogers 5880 0.508MM
- Board size: 2*3cm
- Quantity: 42pcs/panel
- Delivery time: 5 days
Rogers PCB RT/duroid 5880 Laminates
Basic properties:
- Dielectric constant: 2.2±0.02
- Dissipation factor: 0.0004/0.0009
- Dielectric constant design: 2.2 8GHZ-40GHZ
Standard thickness options:
- 0.005" (0.127mm)
- 0.010" (0.254mm)
- 0.015" (0.381mm)
- 0.020" (0.508mm)
- 0.031" (0.787mm)
- 0.062" (1.575mm)
- 0.125" (3.175mm)
Standard panel sizes:
- 18" × 12" (457 × 305mm)
- 18" × 24" (457 × 610mm)
RT/duroid® 5880 high frequency laminates are PTFE composites reinforced with glass microfibers. The randomly oriented microfibers result in exceptional dielectric constant uniformity. The dielectric constant of these high frequency laminates is the lowest of all products, and low dielectric loss make them well suited for high frequency/broad band applications where dispersion and losses need to be minimized.
Because of its extremely low water absorption characteristics, RT/duroid 5880 laminates are ideal for applications in high moisture environments. These laminates are easily cut, sheared and machined to shape, and resistant to all solvents and reagents normally used in etching printed circuits or plating edges and holes.
Key Applications
- Commercial airline broadband antennas
- Microstrip and stripline circuits
- Millimeter wave applications
- Military radar systems
- Missile guidance systems
- Point-to-point digital radio antennas
Technical Specifications
- Material: Rogers 5880 Laminate
- Layer: 2
- Surface finish: Immersion gold
- Copper Weight: 1OZ
- Solder mask: Black
- Silk Screen: White
- Delivery time: Sample for 3 days, Mass production: 5-8 days, 24 hours available
