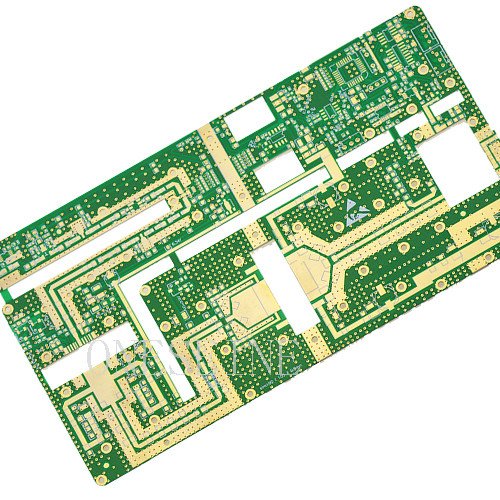

Rogers RO4350B HF PCB Board 6.4mm DK3.5 for Signal Integrity

HF Signal Circuit Boards Rogers Ro4350B Multilayer PCB 0.254 & 0.508 & 0.8 & 1.524mm DK3.5

• Name: HF Signal Circuit Boards Rogers Ro4350B Multilayer PCB
• Material: RO4350B
• Board thickness: 0.8mm
• Surface finish: Immersion gold
• Copper thickness: 0.5OZ
• Min Line: 5mil
• Min hole: 8mil
• Application: Integrity signal system

Designed for high-frequency (HF) signal integrity, these multilayer printed circuit boards (PCBs) utilize Rogers RO4350B laminate material. This high-performance substrate features a stable dielectric constant (Dk) of 3.48 @ 10 GHz, ensuring precise impedance control and minimal signal loss critical for RF applications.

The boards are offered in multiple standard thickness options: 0.254 mm (10 mil), 0.508 mm (20 mil), 0.8 mm (31.5 mil), and 1.524 mm (60 mil), providing flexibility for various design requirements and stack-up configurations.

• Application: High-frequency (HF) signal circuits
• Material: Rogers RO4350B laminate
• Construction: Multilayer PCB
• Thickness Options: 0.254 mm, 0.508 mm, 0.8 mm, 1.524 mm
• Key Property: Dielectric Constant (Dk) ~3.5 (3.48 @ 10 GHz)
• Benefit: Ensures precise impedance control and low loss for RF signals
